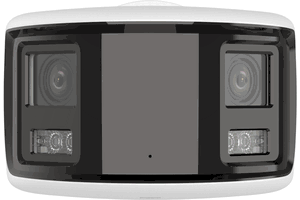

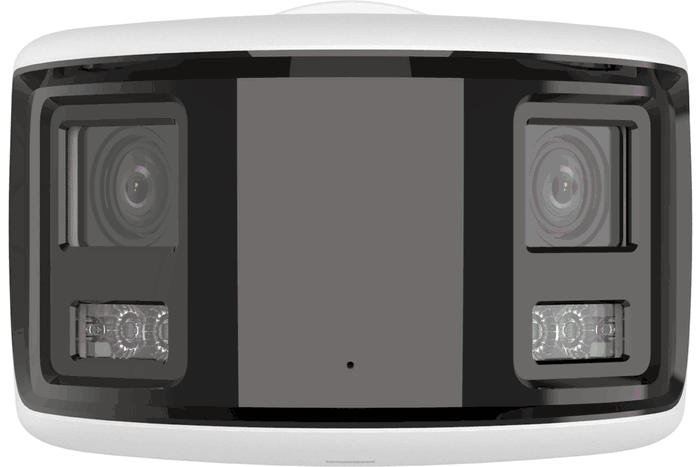

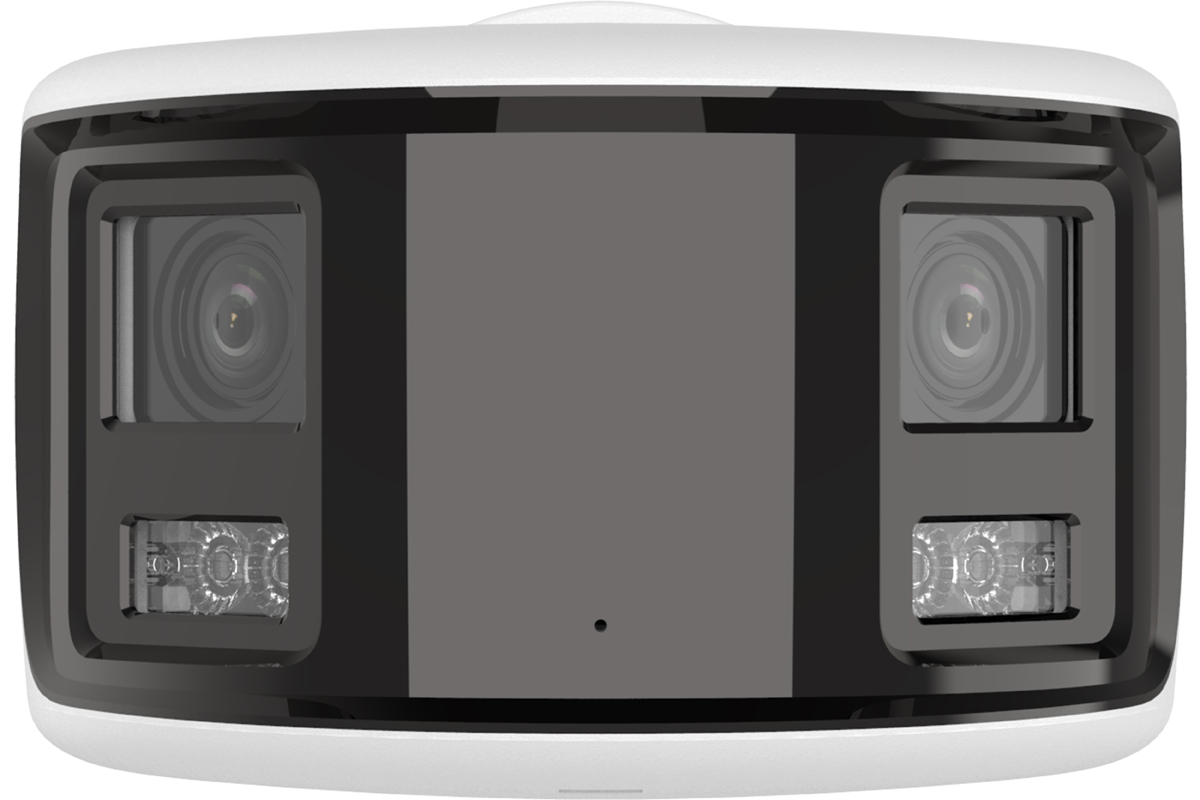

CMIP9C8PW-SDL LTS 8 MP Panoramic, 2x 1/1.8" Sensor, 4mm, Full Color, 130dB WDR, DC 12V/PoE; Suggestion: Use 87D-N NVR or 89/86

SKU#

:

CMIP9C8PW-SDL

Regular Price

:

$389

Sale Price

:

$319.95

You Save

$69.05(17.75% )

Availability

:

Usually ships the next business day

Quantity

:

CMIP9C8PW-SDL LTS 8 MP Panoramic, 2x 1/1.8" Sensor, 4mm, Full Color, 130dB WDR, DC 12V/PoE; Suggestion: Use 87D-N NVR or 89/86

Model	CMIP9C8PW-SDL
Camera
Image Sensor	2 x 1/1.8" Progressive Scan CMOS
Max. Resolution	5120 x 1440
Min. Illumination	Color: 0.0005 Lux @ f 1.0, AGC on; 0 Lux with supplemental light
Shutter Speed	1/3 to 1/100, 000 sec.
Angle Adjustment	Pan: 0°to 355°, tilt: 0°to 90°, rotate: 0°to 360°
Lens
Lens Type	Fixed focal lens, dual lens: 4 mm
FOV	Horizontal: 180° ± 10° \| Vertical: 44°
Lens Mount	M16
Iris Type	Fixed
Aperture	1.0
Depth of Field	3.6 m to ∞
Detection, Observation, Recognition, Identification
Ranges (Approximate)	4 mm: D: 250 ft (77 m), O: 100 ft (30 m), R: 50 ft (15 m), I: 20 ft (7 m)
Supplemental Lighting
Type	White Light
Range	Up to 131 ft (40 m)
Technology	Smart
Video
Main Stream	When WDR is On: 50 Hz: 12.5 fps (5120 x 1440), 60 Hz: 15 fps (5120 x 1440) When WDR is Off: 50 Hz: 20 fps (5120 x 1440), 60 Hz: 20 fps (5120 x 1440)
Sub-Stream	When WDR is On: 50 Hz: 12.5 fps (1920 x 536, 960 x 272), 60 Hz: 15 fps (1920 x 536, 960 x 272) When WDR is Off: 50 Hz: 20 fps (1920 x 536, 960 x 272), 60 Hz: 20 fps (1920 x 536, 960 x 272)
Video Compression	Main stream: H.265+ / H.265 / H.264+ / H.264 Sub-stream: H.265 / H.264 / MJPEG
Video Bit Rate	32 Kbps to 16 Mbps
H.264 Type	Baseline Profile, Main Profile, High Profile
H.265 Type	Main Profile
Bit Rate Control	CBR, VBR
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	1 fixed region(s) for main stream
Audio
Audio Type	Mono
Audio Compression	G.711 / G.722.1 / G.726 / MP2L2 / PCM/ MP3 / AAC-LC
Audio Bit Rates	64 Kbps (G.711ulaw / G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 192 Kbps (MP2L2) / 8 to 320 Kbps (MP3) / 16 to 64 Kbps (AAC-LC)
Audio Sampling Rates (kHz)	8 / 16 / 32 / 44.1 / 48
Environmental Noise Filtering	Yes
Network
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Simultaneous Live View	Up to 6 channels
API	Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Network Storage	NAS (NFS, SMB / CIFS), Auto Network Replenishment (ANR), NVR
Web Browsers	Plug-in required live view: IE 10, IE 11 , Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters Switching	Yes
Image Settings	Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day / Night Switching	Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)	130 dB
SNR	≥ 52 dB
Image Enhancement	BLC, HLC, 3D DNR
Interface
Ethernet Interface	1 x RJ45 10/100 Mbps self-adaptive Ethernet port
On-Board Storage	Built-in memory card slot supports MicroSD / SDHC/ SDXC / TF cards up to 256 GB
Built-in Microphone	Yes
Built-in Speaker	Max. power consumption: 1 W, max. sound pressure: 10 cm: 97 dB
Audio	1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm	1 input, 1 output (max. 24 VDC, 1 A)
Reset Key	Yes
Event Types
Basic	Motion detection, alarm input and output, flashing alarm light output, audible alarm output, exception
Smart	Line crossing detection, intrusion detection, region entrance detection, region exiting detection (supports alarms triggered by specified target types (human and vehicle)), scene change detection
Linkage	Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing
Deep Learning Functions
Perimeter Protection	Line crossing, intrusion, region entrance, region exiting (supports alarms triggering by specified target types (human and vehicle))
General
Power	12 VDC ± 25%, 0.79 A, max. 9.5 W, ø 5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.29 A to 0.18 A, max. 10.5 W
Materials	Front cover: metal, body: metal, bracket: metal
Dimensions	4.7 x 4.1 x 12" (118.6 x 105.1 x 305.4 mm)
Packaged Dimensions	16 x 7.5 x 7.1" (405 x 190 x 180 mm)
Weight	Approx. 3.1 lb (1,420 g)
Packaged Weight	Approx. 4.9 lb (2,228 g)
Storage Conditions	-22° to 140° F (-30°to 60°C). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-22° to 140° F (-30° to 60° C). Humidity 95% or less (non-condensing)
Languages (33)	English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Functions	Anti-flicker, heartbeat, password reset via email, password protection, one-key reset
Flashing Light(s)	Yes
Certifications
EMC	FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
Safety	UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environmental	CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection Rating(s)	IP67: IEC 60529-2013
