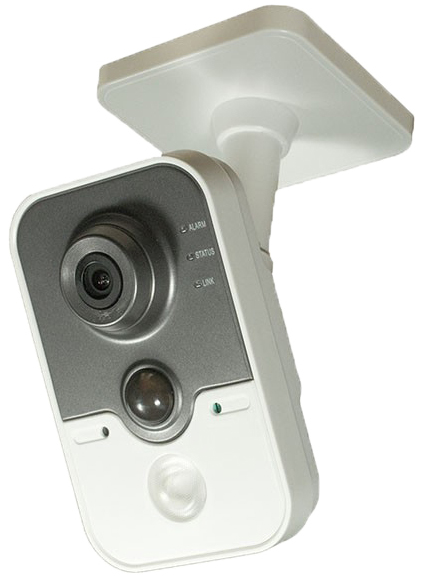

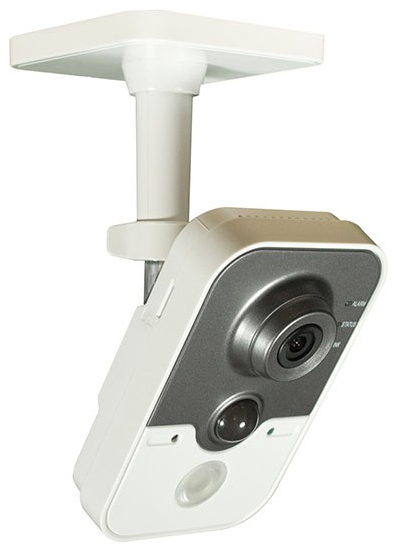

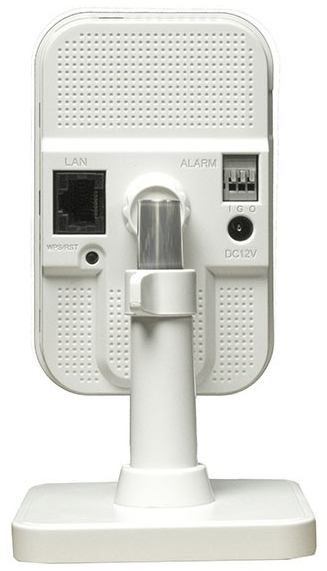

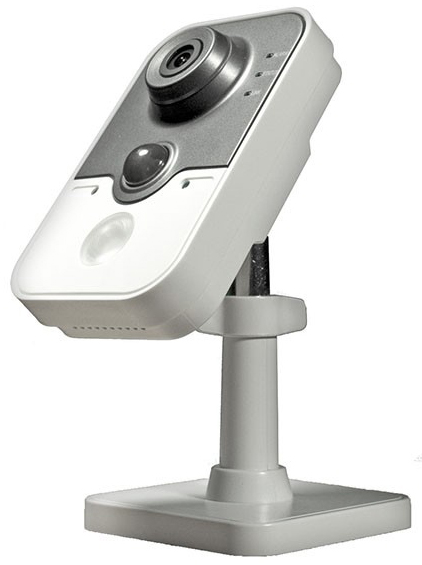

LTS CMIP8942W-28WIFI Platinum HD Cube Network IP Camera 4.1MP - WIFI

Additional View

LTS CMIP8942W-28WIFI Platinum HD Cube Network IP Camera 4.1MP - WIFI

Model	CMIP8942W-28WIFI
Camera Series	Platinum Series
Camera Resolution	4.1MP
Camera Technology	IP / Network
Camera Housing	Indoor
Featured Product	No
Camera
Image Sensor�	1/3" Sensor
Min. Illumination	0.01 Lux @F1.2, AGC on 0 Lux with IR
Shutter Speed	1/25s ~ 1/100,000s
Lens	4.0 mm @F2.0 2048�1536:Angle of view: 70� 1920�1080:Angle of view: 79�
Lens Mount	M12
Day & Night	IR cut filter with auto switch
Digital Noise Reduction	3D DNR
Wide Dynamic Range	Digital WDR
Backlight compensation	Yes,zone configurable
Compression Standard
Video Compression	H.264 /� MJPEG
H.264 codec profile	Main profile
Bit Rate	32 Kbps ~ 16 Mbps
Audio compression	G.711 / G.726 / MP2L2
Audio bit rate	64Kbps(G.711) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Max. Resolution	2048�1536
Frame Rate	60Hz: 20fps(2048x1536), 30fps(1920�1080), 30fps(1280x720) 50Hz: 20fps(2048x1536), 25fps(1920�1080), 25fps(1280x720)
Image Settings	Rotate mode, Saturation, brightness, contrast, sharpeness adjustable through client software or web browser
ROI	Yes, up to 3 configurable areas
Network
Network Storage	Local storage: Built-in Micro SD/SDHC/SDXC card slot, up to 64GB. NAS
Alarm Trigger	Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect,IP address conflict, Storage exception
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
System compatibility	ONVIF, PSIA, CGI, ISAPI
General functionalities	Flickerless, dual stream, heartbeat, mirror, user authentication, video mask, watermark
Interface
Communication Interface	1 RJ45 10M / 100M Ethernet interface
On-board Storage	Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB
Alarm I/O	1/1
Wi-Fi parameters
Wi-Fi standard	IEEE802.11b, 802.11g, 802.11n Draft
Frequency range	2.4 GHz ~ 2.4835 GHz
Communication	Support 20/40 MHz
bandwidth
Protocols	802.11b: CCK, QPSK, BPSK; 802.11g/n: OFDM
802.11g/n: OFDM	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission rate	11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
Transmission range	Outdoor: 200m, Indoor: 50m(depend on environment)
Wireless Standards	IEEE802.11b, 802.11g, 802.11n Draft
General
Working Temperature /Humidity	-22�F ~ 140�F(-30�C ~ 60�C ) Humidity 95% or less (non-condensing)
Power Supply	DC12V�10% / PoE(802.3af)
Power Consumption	Max. 5W
PIR	Angle: 80� Range: 33ft (10m)
IR Range	33ft (10m)
Dimension�	2.60"x3.60"x5.17" (66.0�91.5�131.3 mm)
Weight	0.9 lbs (400g)

free shipping

orders $500 and up

Search Product

Products

customer services

By Manufacturer

By Price

Tell A Friend

bookmark site!

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

Additional View

LTS CMIP8942W-28WIFI Platinum HD Cube Network IP Camera 4.1MP - WIFI

SKU#

:

CMIP8942W-28WIFI

Regular Price

:

$249.95

Sale Price

:

$169.95

You Save

$80.00(32.01% )

Availability

:

Usually ships the next business day

Quantity

:
