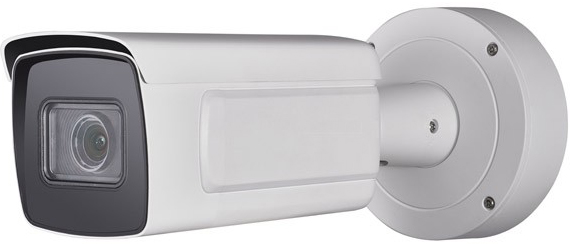

LTS CMIP7923WLPR-32R 2 MP VF Bullet LPR Network Camera

Model	CMIP7923WLPR-32R
Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Min. Illumination	Color: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed	1 s to 1/100,000 s
Slow Shutter	Yes
Day & Night	IR Cut Filter
Digital Noise Reduction	3D DNR
WDR	140 dB
Angle Adjustment	Bracket, pan: 0� to 355�, tilt: 0� to 90�, rotate: 0� to 360�
Lens
Focal length	8 to 32 mm
Aperture	F1.6
Focus	Auto, semi-auto, manual
FOV	horizontal FOV 42.5� to 13.4�, vertical FOV 23.4� to 7.7�, diagonal FOV 49� to 15.3�
Lens Mount	Integrated
IR
IR Range	up to 328(100 m)
Wavelength	850 nm
Compression Standard
Video Compression	Main stream: H.265/H.264/H.265+/H.264+ Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
H.264 Type	Baseline Profile/Main Profile/High Profile
H.264+	Main stream supports
H.265 Type	Main Profile
H.265+	Main stream supports
Video Bit Rate	32 Kbps to 16 Mbps
Audio Compression	No
Audio Bit Rate	No
Smart Feature-set
Perimeter Protection	Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Exception Detection	Scene change detection, defocus detection
Statistics	No
Face Detection	Yes
Recognition	License Plate Recognition
Region of Interest	4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic tracking
Road Traffic and Vehicle Detection
Accuracy (Under recommended installation and lighting conditions)	Capture rate > 98% Vehicle moving direction recognition accuracy > 96% Mistaken capture rate < 2% (entrance/exit), < 5% (checkpoint)
Blacklist and whitelist	Max. 10,000 records
No License Plate Detection	Yes
Motorcycle LPR	Yes (only applicable to checkpoint)
Max. Resolution	1920 � 1080
Main Stream	50Hz: 50fps (1920 � 1080, 1280 � 960, 1280 � 720) 60Hz: 60fps (1920 � 1080, 1280 � 960, 1280 � 720)
Sub Stream	50Hz: 25fps (704 � 576, 640 � 480) 60Hz: 30fps (704 � 480, 640 � 480)
Third Stream	50Hz: 25fps (1920 � 1080, 1280 � 960, 1280 � 720, 704 � 576, 640 � 480) 60Hz: 30fps (1920 � 1080, 1280 � 960, 1280 � 720, 704 � 480, 640 � 480)
Fourth Stream	50Hz: 25fps (1920 � 1080, 1280 � 720, 704 � 576, 640 � 480) 60Hz: 30fps (1920 � 1080, 1280 � 720, 704 � 480, 640 � 480)
Fifth Stream	50Hz: 25fps (704 � 576, 640 � 480) 60Hz: 30fps (704 � 480, 640 � 480)
Custom Stream	50Hz: 25fps (1920 � 1080, 1280 � 720, 704 � 576, 640 � 480) 60Hz: 30fps (1920 � 1080, 1280 � 720, 704 � 480, 640 � 480)
Image Enhancement	BLC, HLC, 3D DNR, Defog, EIS, lens distortion correction
Image Setting	"Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser"
Target Cropping	Yes
SVC	H.264 and H.265 encoding
Day/Night Switch	Day/Night/Auto/Schedule/Triggered by Alarm In/ Triggered by video
Picture Overlay	LOGO picture can be overlaid on video with 128 � 128 24bit bmp format
Network
Network Storage	microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error, alarm for listed license plate in the blacklist and whitelist
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Security Measures	Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
General Function	"One-key reset, anti-flicker, five streams and custom stream, heartbeat, password protection, privacy mask, watermark, IP address filter"
API	ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Simultaneous Live View	Up to 20 channels
User/Host	Up to 32 users. 3 user levels: administrator, operator and user
Web Browser	Plug-in required live view: IE8+, Chrome31.0-44, Mozilla Firefox30.0-51, Safari8.0+ Plug-in free live view: Chrome45+, Mozilla Firefox52+
Interface
Audio	No
Communication Interface	1 RJ45 10M/100M/1000M Ethernet port, 1 RS-485 interface (half duplex, Pelco-P, Pelco-D, self-adaptive)
Alarm	2 inputs, 2 outputs (up to 24 VDC 1A or 110 VAC 500 mA)
Video Output	1Vp-p composite output (75 Ω/CVBS)
On-board storage	Built-in micro SD/SDHC/SDXC slot, up to 256 GB
BNC	CVBS analog output (4CIF resolution), internal
Reset Button	Yes
Environment Noise Filtering	No
Audio Sampling Rate	No
General
Operating Conditions	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), -H: -40 �C to 60 �C (-40 �F to 140 �F) Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 20%, two-core terminal block PoE (802.3at, class 4)
Power Consumption and Current	12 VDC, 1.2 A, max. 14 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A
Protection Level	IP67, IK10
Material	Aluminum alloy
Dimensions	Camera: Φ140 � 351 mm (Φ5.5" � 13.8") With package: 405 � 190 � 180 mm (15.9" � 7.5" � 7.1")
Weight	Camera: approx. 2.5 kg (5.51 lb.) With package: approx. 2.75 kg (6.06 lb.)

free shipping

orders $500 and up

Search Product

Products

customer services

By Manufacturer

By Price

Tell A Friend

bookmark site!

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

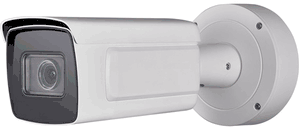

LTS CMIP7923WLPR-32R 2 MP VF Bullet LPR Network Camera
