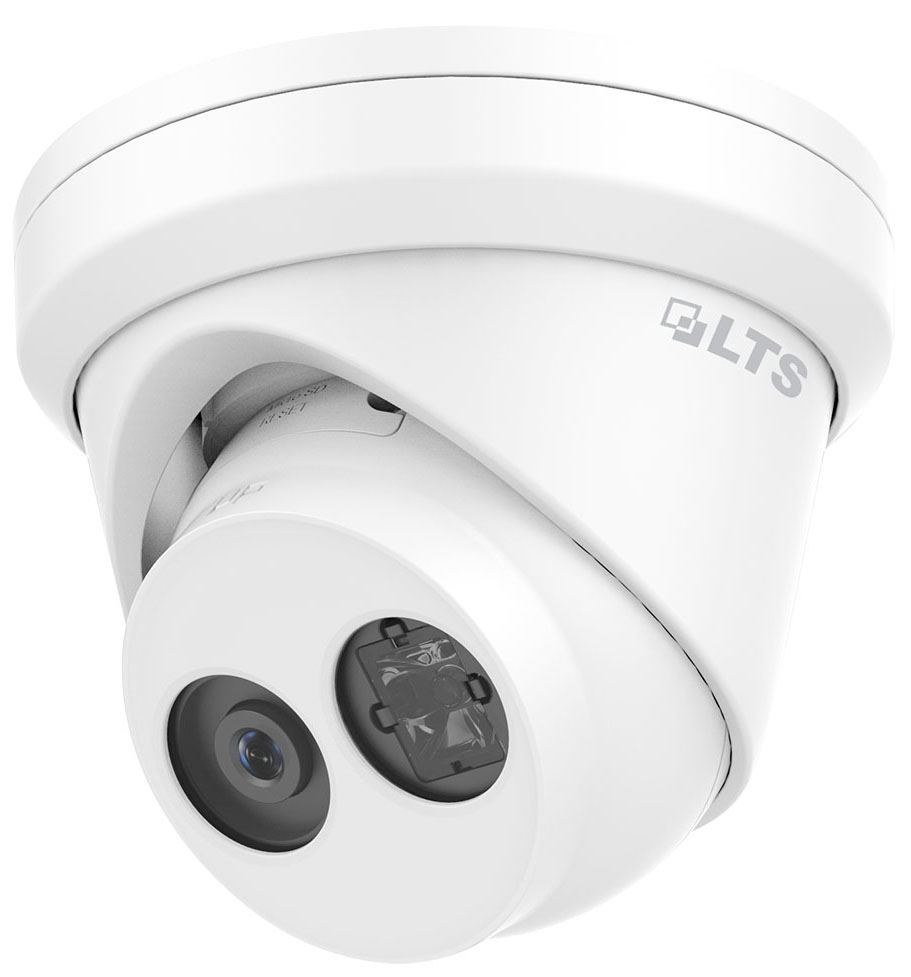

LTS CMIP3342W-28MA 4MP Network Matrix IR Turret Camera w/ Built-in Microphone

SKU#

:

CMIP3342W-28MA

Regular Price

:

$219.95

Sale Price

:

$139.95

You Save

$80.00(36.37% )

Availability

:

Usually ships the next business day

Pre-Made Cat5e Cable

:

Power Supply

:

Quantity

:

LTS CMIP3342W-28MA 4MP Network Matrix IR Turret Camera w/ Built-in Microphone

Model	CMIP3342W-28MA
Camera
Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed	1/3 s to 1/100,000 s
Slow Shutter	Yes
Day & Night	IR Cut Filter
WDR	120 dB
Angle Adjustment	Pan: 0░ to 360░, tilt: 0░ to 75░, rotate: 0░ to 360░
Lens
Lens Type	Fixed lens, 2.8 mm
Aperture	F1.6
FOV	2.8 mm: Horizontal FOV: 103░, vertical FOV: 58░, diagonal FOV: 123░
Lens Mount	M12
Illuminator
IR Range	Up to 98ft(30 m)
Wavelength	850 nm
Video
Max. Resolution	2688 ╫ 1520
Main Stream	50Hz: 25fps (2688 ╫ 1520, 2560 ╫ 1440, 2304 ╫ 1296, 1920 ╫ 1080, 1280 ╫ 720) 60Hz: 30fps (2688 ╫ 1520, 2560 ╫ 1440, 2304 ╫ 1296, 1920 ╫ 1080)
Sub Stream	50Hz: 25fps (640 ╫ 480, 640 ╫ 360, 320 ╫ 240) 60Hz: 30fps (640 ╫ 480, 640 ╫ 360, 320 ╫ 240)
Third Stream	50Hz: 25fps (1280 ╫ 720, 640 ╫ 360, 352 ╫ 288) 60Hz: 30fps (1280 ╫ 720, 640 ╫ 360, 352 ╫ 240)
Video Compression	Main stream/third stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG
H.264 Type	Main Profile/High Profile
H.264+	Main stream supports
H.265 Type	Main Profile
H.265+	Main stream supports
Video Bit Rate	32 Kbps to 16 Mbps
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Audio
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/MP3
Audio Bit Rate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
Environment Noise Filtering	Yes
Audio Sampling Rate	8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Smart Feature-Set
Smart Event	Line crossing detection, intrusion detection and face detection
Basic Event	Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Face Detection	Yes
Linkage Method	Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
Region of Interest	1 fixed region for main stream and sub-stream
Image Enhancement	BLC, HLC, 3D DNR
Image Setting	Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Day/Night Switch	Day/Night/Auto/Schedule
Network
Network Storage	microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP�, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
API	ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5) , watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Simultaneous Live View	Up to 6 channels
User/Host	Up to 32 users, 3 levels: administrator, operator and user
Web Browser	Plug-in required live view: IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome 45.0+, Mozilla Firefox52.0+
Interface
Communication Interface	1 RJ45 100M self-adaptive Ethernet port
Audio	1 audio input (built-in microphone), mono sound
Video Output	No
Interface Style	Pigtail style interface
On-board storage	Built-in micro SD/SDHC/SDXC slot, up to 128 GB
General
General Function	Anti-flicker, three streams, heartbeat, mirror, 4 regions of privacy mask
Reset	Reset via reset button on camera body, web browser and client software
Startup & Operating Conditions	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), humidity 95% or less (non-condensing)
Storage Conditions	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 3)
Power Consumption and Current	12 VDC, 0.5 A, max. 6 W; PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 7.5 W
Material	Metal
Dimensions	Camera: Φ 127.3 ╫ 95.9 mm (5" ╫ 3. 8") With package: 150 ╫ 150 ╫ 141 mm (5.9" ╫ 5.9" ╫ 5.6")
Weight	Camera: Approx. 635 g (1.4 lb.) With package: Approx. 890 g (1.96 lb.)
Approval
EMC	47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
Safety	UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
Chemistry	2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
Protection	Ingress protection: IP66 (IEC 60529-2013)
