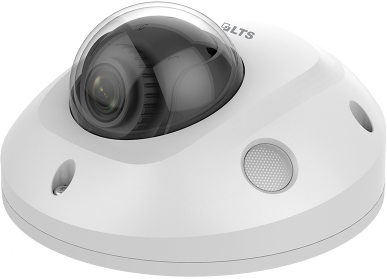

LTS CMIP3142NW-28SWIFI IP-P Mini Dome WiFi 4MP

SKU#

:

CMIP3142NW-28SWIFI

Regular Price

:

$299.95

Sale Price

:

$199.95

You Save

$100.00(33.34% )

Availability

:

Usually ships the next business day

Power Supply

:

Pre-Made Ethernet Cable

:

Quantity

:

LTS CMIP3142NW-28SWIFI IP-P Mini Dome WiFi 4MP

Model	CMIP3142NW-28SWIFI
Camera Series	Platinum Series
Camera Resolution	4MP
Camera Technology	IP / Network
Camera Housing	Dome
Featured Product	No
Camera
Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	Color: 0.018 lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed	1/3 s to 1/100,000 s
Lens	2.8mm@F2.0 2048 × 1536:Angle of view: 86° 1920 × 1080:Angle of view: 98.5°
Lens Mount	M12
Day & Night	IR Cut Filter
Digital Noise Reduction	3D DNR
Wide Dynamic Range	120dB
3-Axis Adjustment	Pan: -30°to +30°, tilt: 0°to 75°, rotate: 0°to 360°
Compression Standard
Video Compression	Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264
H.264 compression profile	Main Profile/High Profile
Bit Rate	32 Kbps ~ 16 Mbps
Audio compression	G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Audio bit rate	64Kbps(G.711) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Max. Resolution	2688 × 1520
Frame Rate	60Hz: 20fps (2048 x 1536), 30fps (1920 × 1080), 30fps (1280 x 720) 50Hz: 20fps (2048 x 1536), 25fps (1920 × 1080), 25fps (1280 x 720)
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Network
Network Storage	Support MicroSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, QoS, IPv6
API	ONVIF (PROFILE S, PROFILE G), ISAPI
General functionalities	One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Interface
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage	Built-in Micro SD/SDHC/SDXC slot, up to 128G
Alarm interface	1 Input: Alarm in (3.5mm), 1 Output: Alarm out (3.5mm)
General
Working Temperature /Humidity	-30 °C ~ 60 °C (-22 °F ~ 140 °F), humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, PoE (802.3af, class 3)
Power Consumption	12 VDC, 0.7A, max. 8.5W, F 5.5mm coaxial plug power PoE (802.3af, 36V to 57V), 0.3 A to 0.1 A, max. 10W
Ingress Protection Level	IK08, IP66
Dimension	F110 mm × 56.4 mm (F4.3" × 2.2")
Weight	Camera: Approx. 400 g (0.9 lb.)"
