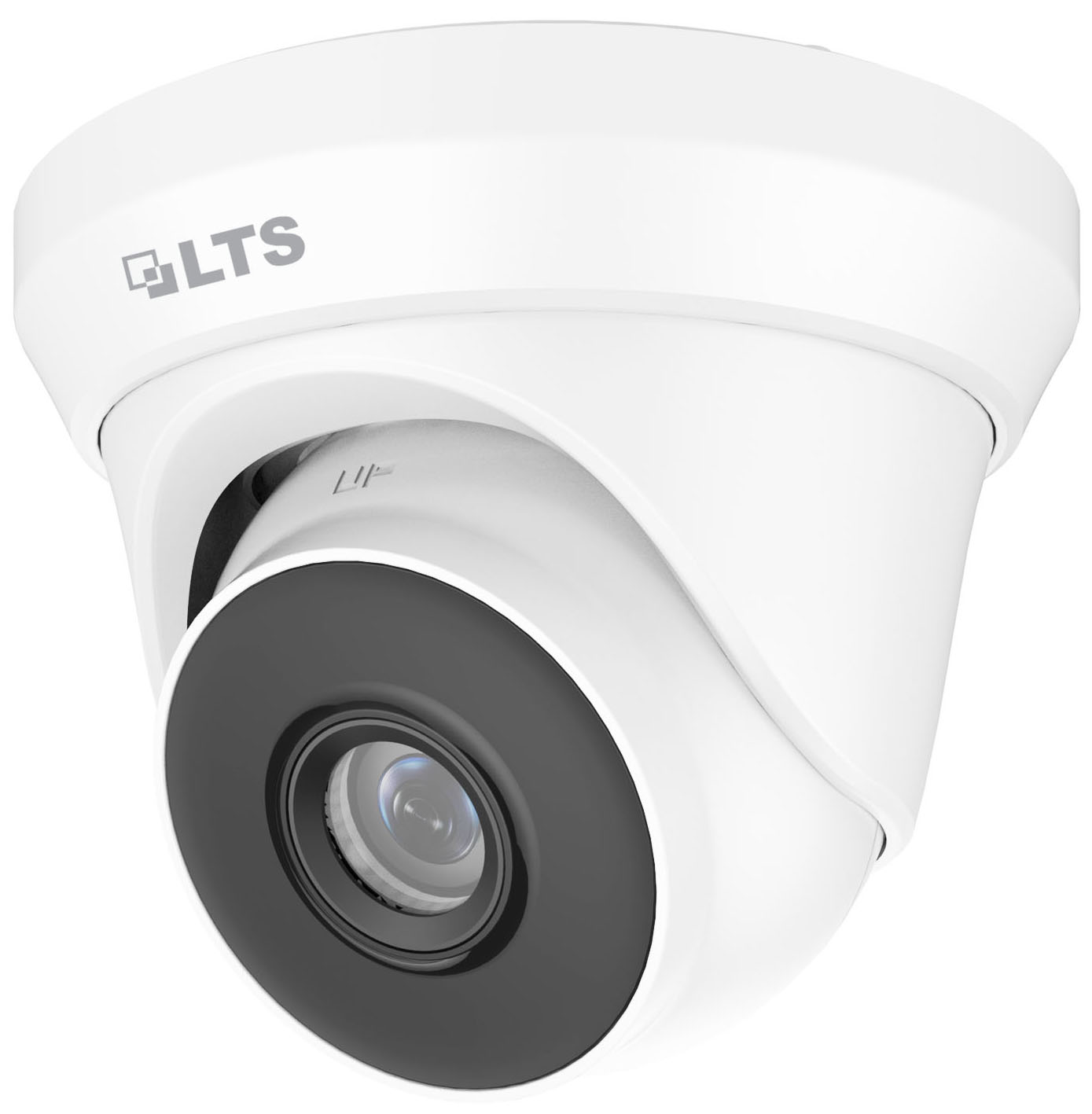

LTS CMIP1022-28M 2MP IP IR Turret Camera with MicroSD Card Slot

Call Toll Free 866-446-CCTV (2288) Mon-Fri 9am-6PM EST

0 Items $0.00

free shipping

to USA & CANADA

orders $500 and up

Click For Details

Search Product

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

One year warranty on all products

Home

IP Cameras and Network Video Recorders NVRs

IP Cameras and NVR's by LTS

LTS Platinum Series IP Surveillance Cameras, Older and Discontinued Products

LTS Platinum Series Turret Type IP Cameras, Indoor/Outdoor

LTS CMIP1022-28M 2MP IP IR Turret Camera with MicroSD Card Slot

SKU#

:

CMIP1022-28M

Regular Price

:

$149.95

Sale Price

:

$89.95

You Save

$60.00(40.01% )

Availability

:

Usually ships the next business day

Pre-Made Cat5e Cable

:

Power Supply

:

Quantity

:

LTS CMIP1022-28M 2MP IP IR Turret Camera with MicroSD Card Slot

Model	CMIP1022-28M
Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination	Color: 0.028 Lux @ (F2.0, AGC ON)
Shutter Speed	1/3 s to 1/100,000 s
Slow Shutter	Yes
Day & Night	IR Cut Filter
WDR	DWDR
Angle Adjustment	Pan: 0� to 360�, tilt: 0� to 75�, rotate: 0� to 360�
Lens
Lens Type	Fixed lens, 2.8 mm
Aperture	F2.0
FOV	2.8mm: Horizontal FOV: 114�, vertical FOV: 62�, diagonal FOV: 135�
Lens Mount	M12
Illuminator
IR Range	Up to 98ft(30 m)
Wavelength	850 nm
Video
Max. Resolution	1920 � 1080
Main Stream	50Hz: 25fps (1920 � 1080, 1280 � 960, 1280 � 720) 60Hz: 30fps (1920 � 1080, 1280 � 960, 1280 � 720)
Sub-Stream	50Hz: 25fps (640 � 480, 640 � 360, 320 � 240) 60Hz: 30fps (640 � 480, 640 � 360, 320 � 240)
Video Compression	Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG
H.264 Type	Baseline Profile/Main Profile/High Profile
H.265 Type	Main Profile
Video Bit Rate	32 Kbps to 8 Mbps
Smart Feature-Set
Basic Event	Motion detection, video tampering alarm, exception (illegal login, HDD full, HDD error)
Linkage Method	Upload to FTP/memory card, notify surveillance center, send email, trigger capture
Region of Interest	1 fixed region for main stream
Image Enhancement	BLC, 3D DNR
Image Setting	Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Day/Night Switch	Day/Night/Auto/Schedule
S/N Ratio	> 50dB
Network
Network Storage	microSD/SDHC/SDXC card (256GB) (supports image and logs storage only), local storage
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
API	ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Simultaneous Live View	Up to 6 channels
User/Host	Up to 32 users, 3 levels: administrator, operator and user
Web Browser	IE8+, Chrome 31.0-44, Firefox30.0-51, Safari8.0+
Interface
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage	Built-in micro SD/SDHC/SDXC slot, up to 128GB (supports image and logs storage only)
General
General Function	One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Reset	Reset via reset button on camera body, web browser and client software
Startup and Operating Conditions	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), humidity 95% or less (non-condensing
Storage Conditions	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), humidity 95% or less (non-condensing
Power Supply	12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 0)
Power Consumption and Current	12 VDC, 0.4 A, max.5 W; PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max.6.5 W
Material	Camera body: metal, bottom base: plastic
Dimensions	Camera: Φ110 mm � 94.4 mm (Φ4.3" � 3.7") With package: 150 � 150 � 141 mm (5.9" � 5.9" � 5.6")
Weight	Camera: Approx. 364 g (0.8 lb.) With package: Approx. 691 g (1.5 lb.)
Approval
EMC	47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32:2015, KN 35: 2015
Safety	UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1
Chemistry	2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
Protection	Ingress protection: IP67 (IEC 60529-2013)
