CMHT3C5PW-28L LTS 5 MP 24/7 Color Dual-lens Turret Camera
CMHT3C5PW-28L LTS 5 MP 24/7 Color Dual-lens Turret Camera
Additional View
CMHT3C5PW-28L LTS 5 MP 24/7 Color Dual-lens Turret Camera
SKU#
:
CMHT3C5PW-28L
Regular Price
:
$
169
Sale Price
:
$
129.95
You Save
$39.05(23.11% )
Availability
:
Usually ships the next business day
Quantity
:
Description
Features
Specifications
Accessories
Downloads
Product Review

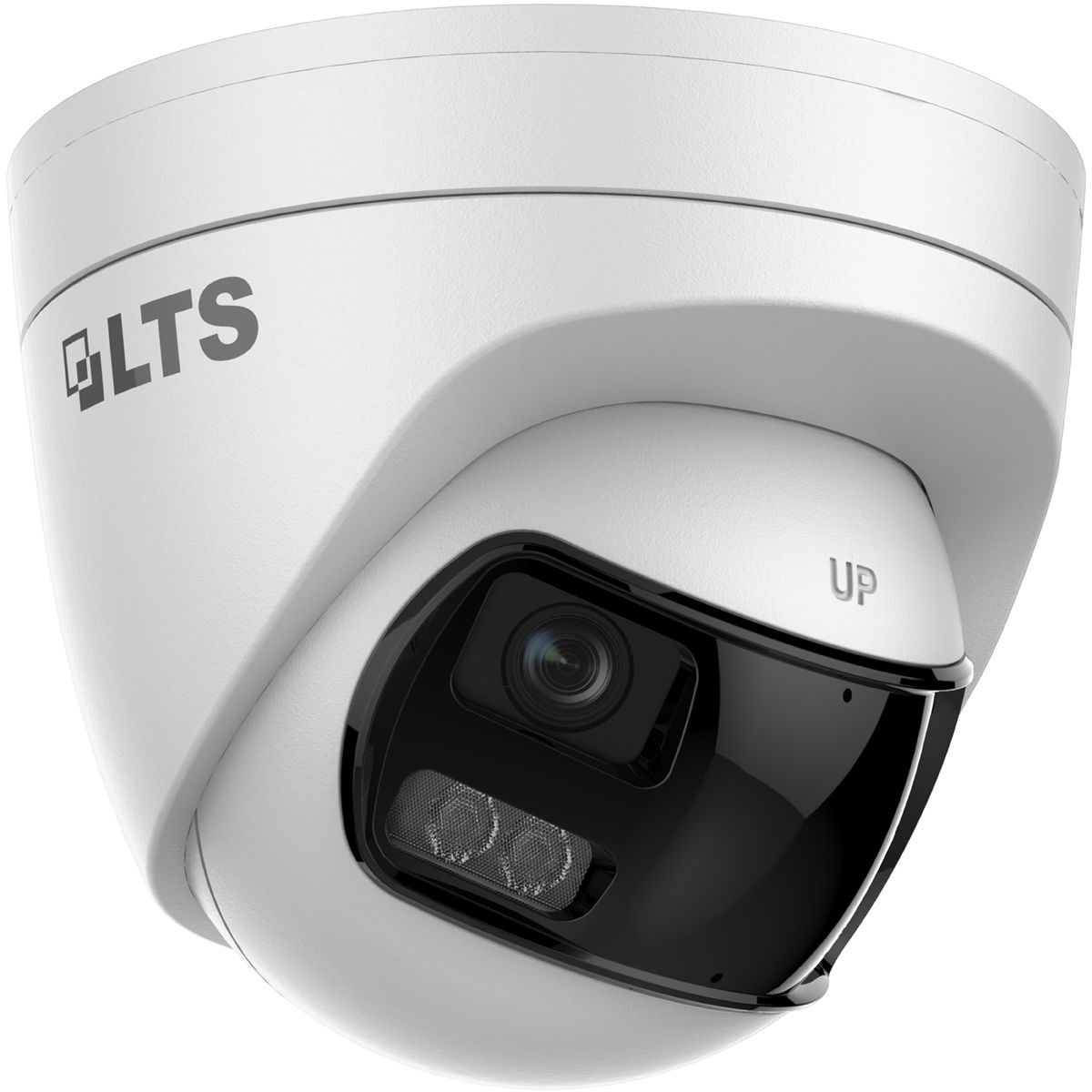

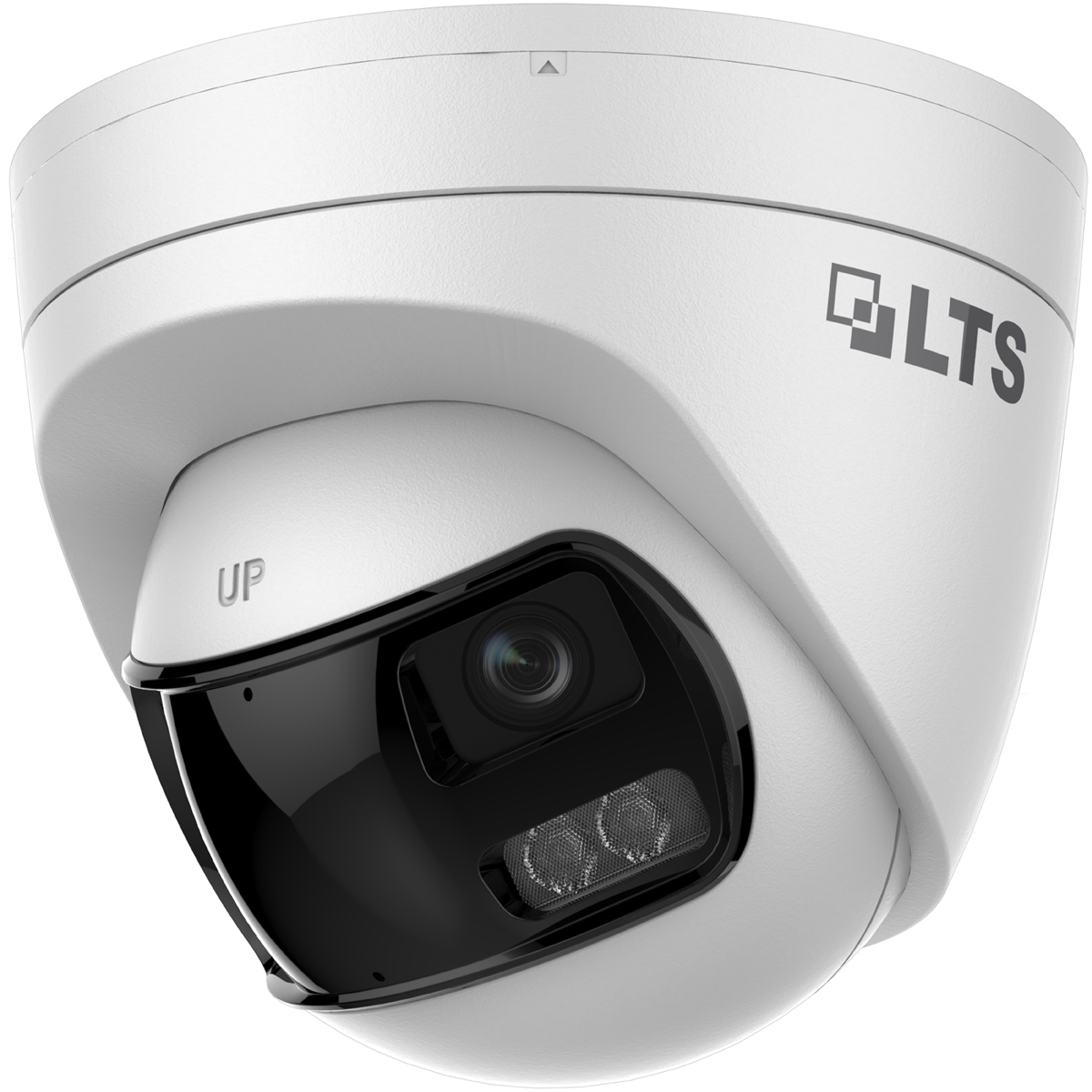

CMHT3C5PW-28L LTS 5 MP 24/7 Color Dual-lens Turret Camera

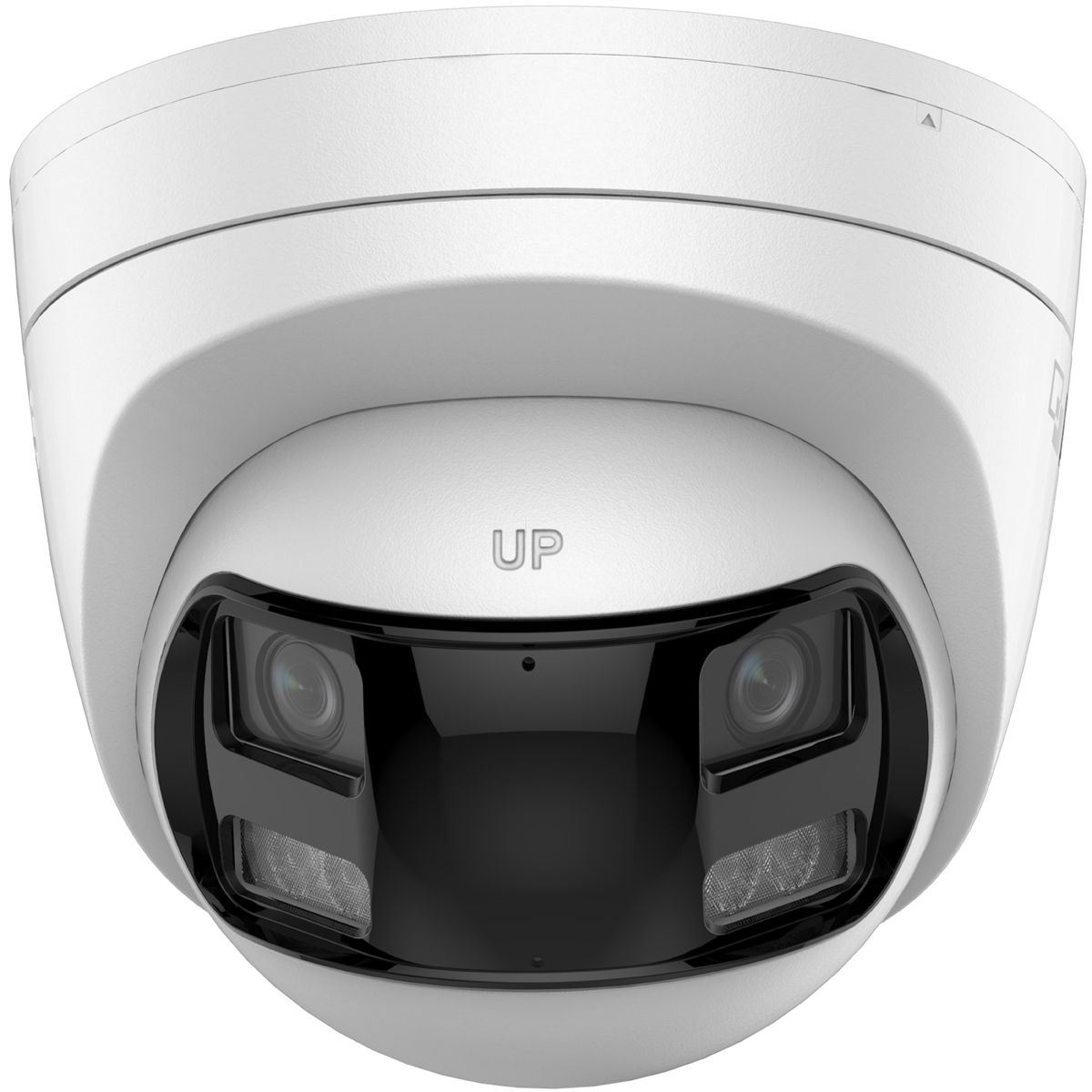

Featuring a dual-lens design and a built-in stitching algorithm, it delivers a seamless 180-degree image
High quality imaging with 5MP, 3328 × 1504 resolution
24/7 color with F1.0 aperture
Smart-Hybrid Light enhances security with adaptable and flexible lighting options.
With 130 dB true WDR technology, it ensures clear imaging even against strong backlight.
3D DNR technology provides clear, sharp, and low noise images.
Supports up to 40m white light and 40m IR distance for enhanced night time imaging.
Equipped with a built-in mic, it delivers high-quality audio via coaxial cable.
Water and dust resistant (IP67)
Recommend DVR compatible models: LTD85D series (fw.: 4.83.300 and above) or LTD83D series (Require September firmware update)
Model
CMHT3C5PW-28L
Camera
Max. Resolution
3328 (H) x 1504 (V)
Shutter Time
1/20 s to 1/50,000 s
Image Sensor
3K CMOS
Slow Shutter
Max. 16 times
Min. Illumination
0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Lens
Lens Type
2.8 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 180°, vertical FOV: 75°
Lens Mount
M12
Illuminator
Supplement Light Range
IR: Up to 40 m, White Light: Up to 40 m
Smart Supplement Light
Yes
Privacy Mask
4 programmable privacy masks
Frame Rate
3K@20 FPS
Wide Dynamic Range (WDR)
≥130 dB
Image Parameters Switch
STD/HIGH-SAT/HIGHLIGHT
Day/Night Mode
Auto
White Balance
Auto/Manual
Image Enhancement
WDR, BLC, HLC, Global
Noise Reduction
3D DNR
Image Settings
Brightness, Contrast, Smart IR, Sharpness, Anti-Banding, AGC
Interface
Video Output
1 HD analog output
Built-in Microphone
Yes
Event
Motion Detection
4 programmable motion areas
General
Power
12 VDC ± 25%, max. 8.9 W
*You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required.
Language
English
Operating Condition
-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
Material
Main body: Metal, Enclosure: Plastic
Dimension
ø130.11 mm x 109.2 mm (ø5.12" x 4.3")
Weight
Approx. 570 g (1.26 lb.)
Approval
Protection
IP67
