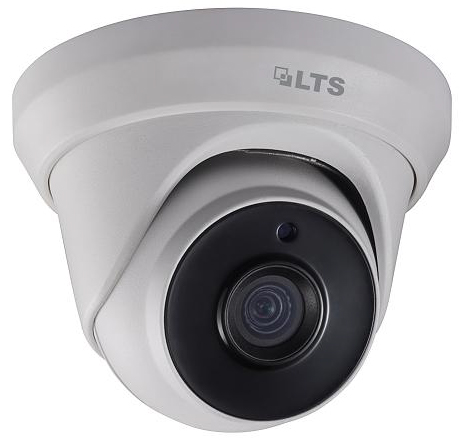

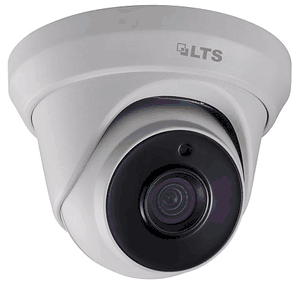

LTS CMHT1752WE-28F 5 MP Ultra-low-light Turret Camera
LTS CMHT1752WE-28F 5 MP Ultra-low-light Turret Camera
LTS CMHT1752WE-28F 5 MP Ultra-low-light Turret Camera
SKU#
:
CMHT1752WE-28F
Regular Price
:
$
189.95
Sale Price
:
$
99.95
You Save
$90.00(47.38% )
Availability
:
Usually ships the next business day
Power Supply
:
No Power Supply
12V 2000mAmps (+19.95)
Cable (video+power)
:
No Cable
25 FT (+14.95)
50 FT (+19.95)
100 FT (+24.95)
Quantity
:
Description
Features
Specifications
Accessories
Downloads
Product Review
LTS CMHT1752WE-28F 5 MP Ultra-low-light Turret Camera
5 MP high performance CMOS
2560 × 1944 resolution
2.8 mm fixed lens
Matrix IR 2.0, smart IR, up to 197ft(60 m) IR distance
3D DNR, 130 dB true WDR
4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
IP67
OSD Menu via UTC technology with Platinum DVR
Model
CMHT1752WE-28F
Camera Series
Platinum Series
Camera Resolution
5MP
Camera Technology
HD-TVI
Camera Housing
Turret
Featured Product
No
Camera
Image Sensor
5 megapixel progressive scan CMOS
Signal System
PAL/NTSC
Resolution
2560 (H) × 1944 (V)
Min. Illumination
Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Frame Rate
TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps
AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps
CVI: 4 MP@25fps, 4 MP@30fps CVBS: PAL, NTSC
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Lens
2.8 mm fixed lens
Horizontal Field of View
98° (2.8 mm)
Lens Mount
M12
Day & Night
IR cut filter
Angle Adjustment (Bracket)
Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
Synchronization
Internal synchronization
WDR (Wide Dynamic Range)
≥ 130 dB
Menu
AGC
Yes
Day/Night Mode
Auto/Color/BW (Black and White)
White Balance
Auto/Manual
BLC (Backlight Compensation)
Yes
WDR
Yes
3D DNR
Level 1 to 9
Privacy Mask
4 programmable privacy masks
Motion Detection
4 programmable areas
Language
English
Functions
Brightness, Sharpness, 3D DNR, Mirror, Smart IR
Interface
Video Output
1 HD analog output
Switch Button
TVI/AHD/CVI/CVBS
General
Operating Conditions
-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply
12 VDC ±25%
Power Consumption
Max. 5.8 W
Protection Level
IP67
Material
Enclosure: Plastic Main body: Metal
IR Range
Up to 197ft(60 m)
Communication
Up the coax, TVI output
Dimensions
Ø 109.82 mm × 91.03 mm (Ø 4.32" × 3.6" )
Weight
Approx. 310 g (0.68 lb.)
