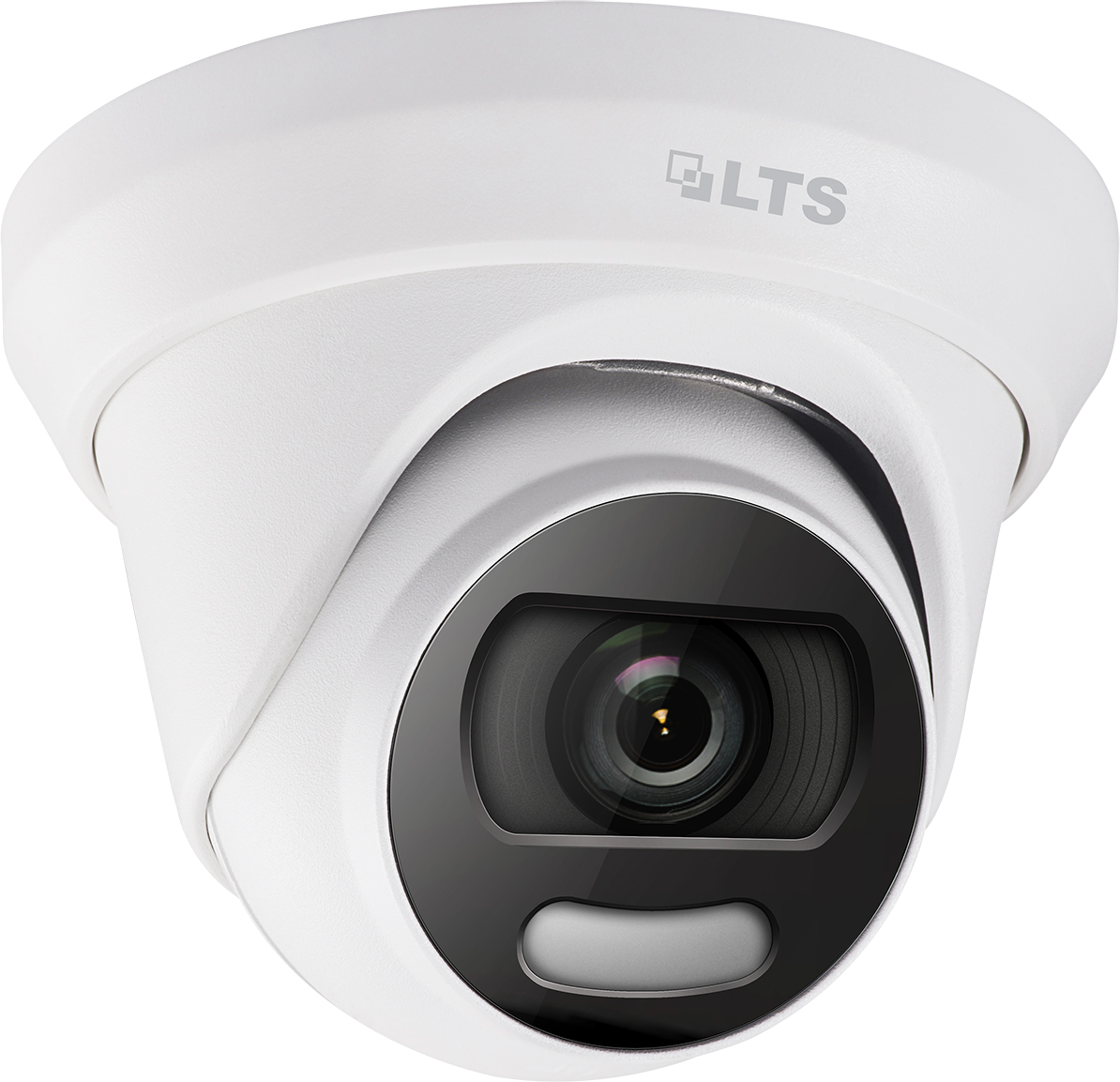

LTS CMHT1752W-28CF 5MP Full Time Color Camera Turret
LTS CMHT1752W-28CF 5MP Full Time Color Camera Turret
LTS CMHT1752W-28CF 5MP Full Time Color Camera Turret
SKU#
:
CMHT1752W-28CF
Regular Price
:
$
199.95
Sale Price
:
$
99.95
You Save
$100.00(50.01% )
Availability
:
Usually ships the next business day
Power Supply
:
No Power Supply
12V 2000mAmps (+19.95)
Cable (video+power)
:
No Cable
25 FT (+14.95)
50 FT (+19.95)
100 FT (+24.95)
Quantity
:
Description
Features
Specifications
Accessories
Downloads
Product Review
LTS CMHT1752W-28CF 5MP Full Time Color Camera Turret
5MP, 2560 × 1944 resolution
24-hour color image
2.8 mm fixed lens
0.0005Lux@F1.0
Up to 66ft(20 m) white light distance
3D DNR, true WDR
4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
IP67
OSD menu via UTC technology with Platinum DVR
Model
CMHT1752W-28CF
Camera
Image Sensor
5 MP CMOS
Resolution
2560 (H) × 1944 (V)
Frame Rate
5MP@20fps
Min. illumination
0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Slow Shutter
Max. 16 times
Lens
2.8 mm fixed lens
Field of View
2.8 mm, horizontal FOV: 104°, vertical FOV: 54°, diagonal FOV: 126°
Lens Mount
M16
Day & Night
Color
WDR (Wide Dynamic Range)
120 dB
Angle Adjustment
Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
Menu
Image Mode
STD/HIGH SAT
AGC
Yes
White Balance
Auto/Manual
HLC
Yes
BLC (Backlight Compensation)
Yes
Privacy Mask
4 programmable privacy masks
Motion Detection
4 programmable areas
WDR
Yes
Functions
Brightness, Sharpness, 3D DNR, Mirror, Smart light
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions
-40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), humidity: 90% or less (non-condensing)
Power Supply
12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
Power Consumption
Max. 3 W
Protection Level
IP67
Material
Main Body: Metal Mounting Base: Plastic
White Light
Up to 66ft(20 m)
Dimensions
Ø 109.82 mm × 85.56 mm ( Ø 4.32" × 3.37")
Weight
Approx. 336 g (0.74 lb.)
