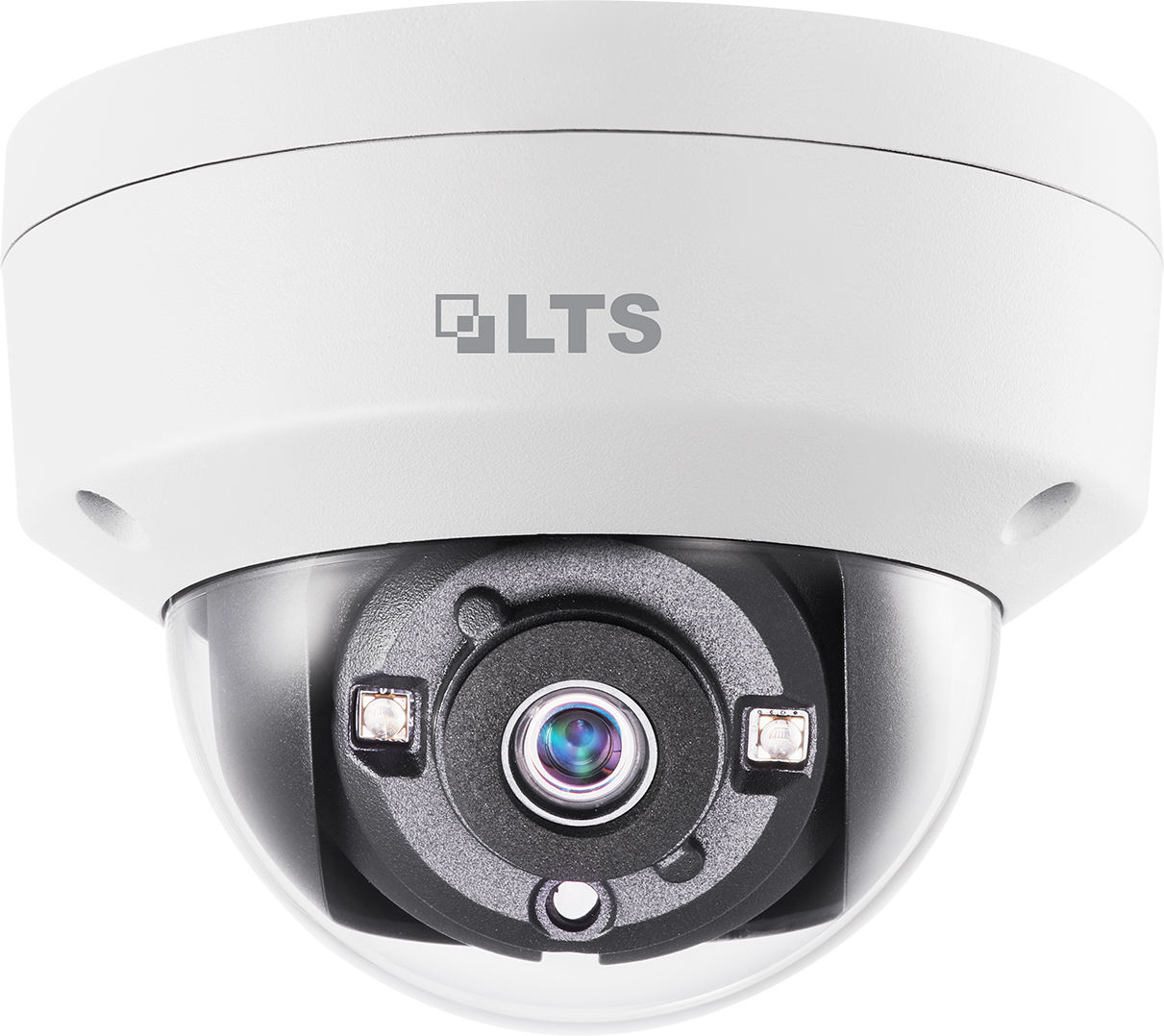

LTS CMHD7322WE-28F 2MP 2.8 Fixed Lens Dome HD-TVI Camera
LTS CMHD7322WE-28F 2MP 2.8 Fixed Lens Dome HD-TVI Camera
LTS CMHD7322WE-28F 2MP 2.8 Fixed Lens Dome HD-TVI Camera
SKU#
:
CMHD7322WE-28F
Regular Price
:
$
129.95
Sale Price
:
$
69.95
You Save
$60.00(46.17% )
Availability
:
Usually ships the next business day
Power Supply
:
No Power Supply
12V 2000mAmps (+19.95)
Cable (video+power)
:
No Cable
25 FT (+14.95)
50 FT (+19.95)
100 FT (+24.95)
150 FT (+34.95)
Quantity
:
Description
Features
Specifications
Accessories
Downloads
Product Review
LTS CMHD7322WE-28F 2MP 2.8 Fixed Lens Dome HD-TVI Camera
2.1MP Ultra Low Light
2.8mm Fixed Lens
1920 x 1080 @30fps
0.005 Lux@F2.0
2 Matrix IR 2.0 LED up to 65ft
True WDR 130dB
TVI/AHD/C
IP67, IK10
Model
CMHD7322WE-28F
Camera Series
Platinum Series
Camera Resolution
2.1MP / 1080P
Camera Technology
HD-TVI
Camera Housing
Turret
Camera
Image Sensor
2.0 megapixel progressive scan CMOS
Signal System
PAL/NTSC
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Resolution
1920 (H) × 1080 (V)
Min. illumination
Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens
2.8 mm fixed focal lens
Horizontal Field of View
104° (2.8 mm)
Lens Mount
M12
Day & Night
IR cut filter
WDR (Wide Dynamic Range)
≥ 130 dB
Angle Adjustment
Pan: 0° to 355°, Tilt:0° to 75°, Rotate: 0° to 355°
Menu
Image Mode
STD/HIGH-SAT
AGC
Support
Day/Night Mode
Auto/Color/BW (Black White)
White Balance
Auto/Manual
AE (Auto Exposure) Mode
WDR/BLC/HLC/Global
Privacy Mask
4 programmable privacy masks
Motion Detection
4 programmable motion areas
NR (Noise Reduction)
3D/2D
Language
English
Functions
Brightness, Sharpness, Mirror, Smart IR, HLC
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions
-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
Power Supply
12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
Power Consumption
Max. 3.4 W
Protection Level
IP67, IK10
Material
Metal
IR Range
Up to 98ft(30 m)
Communication
Up the coax, TVI output
Dimensions
Φ 111 mm × 82.4 mm (Φ 4.4" × 3.2")
Weight
Approx. 492 g (1.08 lb.)
