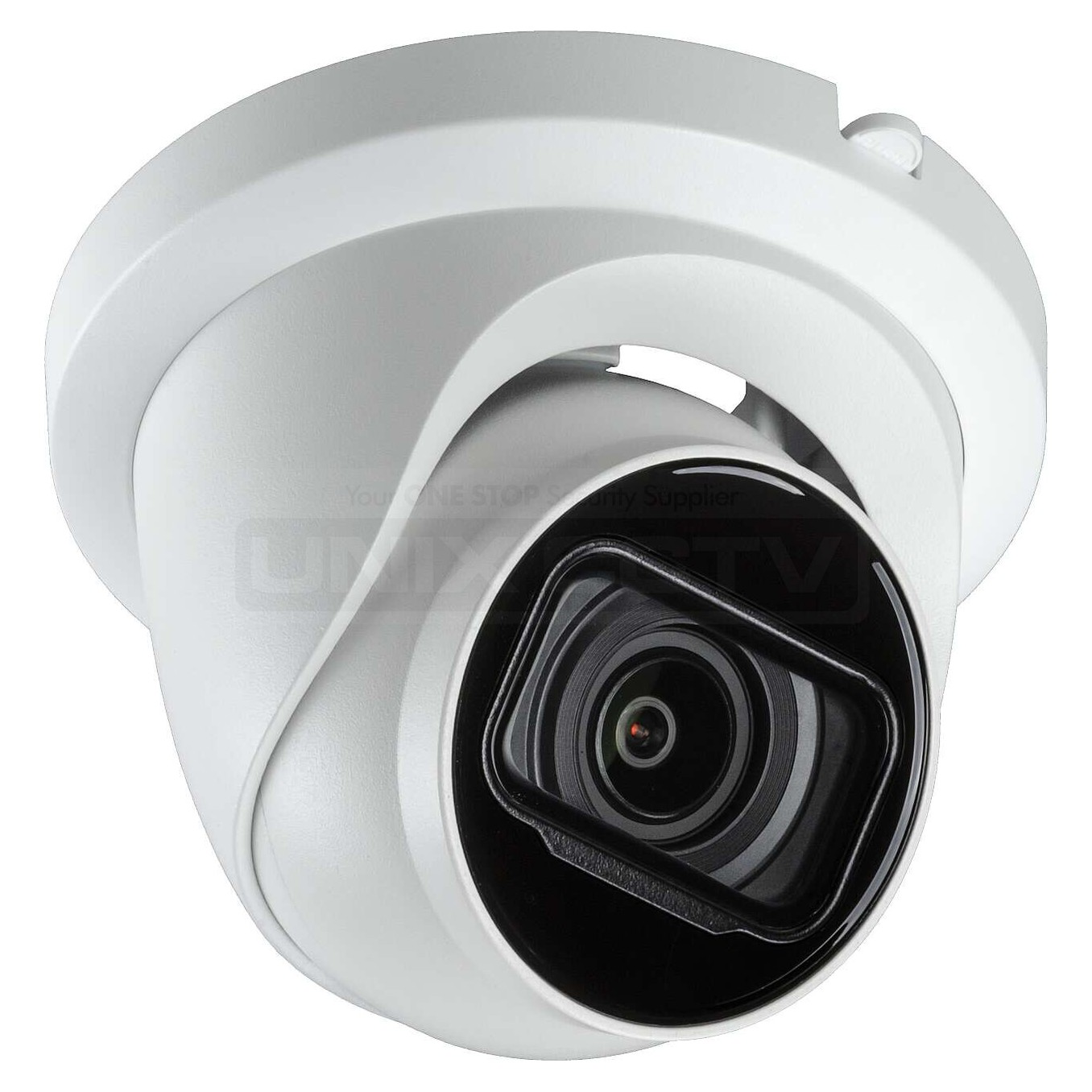

Eyemax CIU-E5162V-W22 E5162V | 5MP 4-In-1 Outdoor IR Turret Camera, Motorized Vari-Focal Lens, UL-Listed, IR Range up to 197ft (60m), IP67, DC 12V

Max 25 fps@5MP (16:9 video output) &buil; CVI / CVBS / AHD / TVI switchable • 2.7 ~ 12mm Motorized Lens • Max. IR length 60 m, Smart IR • IP67, DC12V

Mount Accessories

Wall Mount Bracket	CWB E206W
Junction Box	CJB E137

Camera
Image Sensor	1/2.7 inch CMOS
Max. Resolution	2880 (H) × 1620 (V)
Pixel	5MP
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s
S/N Ratio	>65 dB
Min. Illumination	0.01 Lux/F1.6, 30IRE, 0 Lux IR on
Illumination Distance	60 m (196.9 ft)
Illuminator On/Off Control	Auto; manual
Illuminator Number	2
Pan / Tilt / Rotation Range	Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens
Lens Type	Motorized vari-focal
Auto Focus	N/A
Mount Type	∅14
Focal Length	2.7 ~ 12 mm
Max. Aperture	F1.6
Field of View	Diagonal: 39°~130° Horizontal: 34°~107° Vertical: 19°~55°
Iris Type	Fixed iris
Close Focus Distance	0.5 m (1.64 ft)
DORI Distance	Detect : 69 ~ 191.6m (226.37 ~ 628.6 ft) Observe : 27.6 ~ 76.64m (90.55 ~ 251.44 ft) Recognize : 13.8 ~ 38.32m (45.27 ~ 125.72 ft) Identify : 6.9 ~ 19.16m (22.63 ~ 62.86ft)
Video
Frame Rate (CVI)	PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps
Frame Rate (AHD)	PAL: 4M@25 fps; NTSC: 4M@30 fps
Frame Rate (TVI)	PAL: 4M@25 fps; NTSC: 4M@30 fps
Frame Rate (CVBS)	PAL: 960H; NTSC: 960H
Resolution	5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480)
Day/Night	Auto switch by ICR
BLC	BLC / HLC / DWDR
WDR	DWDR
White Balance	Auto; manual
Gain Control	Auto; manual
Noise Reduction	2D NR
Smart IR	Yes
Mirror	Off / On
Privacy Masking	Off / On (8 area, rectangle)
Certifications
Certifications	CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply	12V ±30% DC
Power Consumption	Max 6.6W (12V DC, IR on)
Environment
Operating Temperature	−30°C to +60°C (−22°F to 140°F); <95% (non-condensation)
Storage Temperature	−30°C to +60°C (−22°F to 140°F); <95% (non-condensation)
Protection Grade	IP67
Structure
Casing	Metal dome+metal cover+plastic decorative ring
Camera Dimensions	∅135 mm × 109 mm ( ∅5.31" × 4.28" )
Net Weight	0.52 kg (1.15 lb)
Gross Weight	0.62 kg (1.37 lb)
