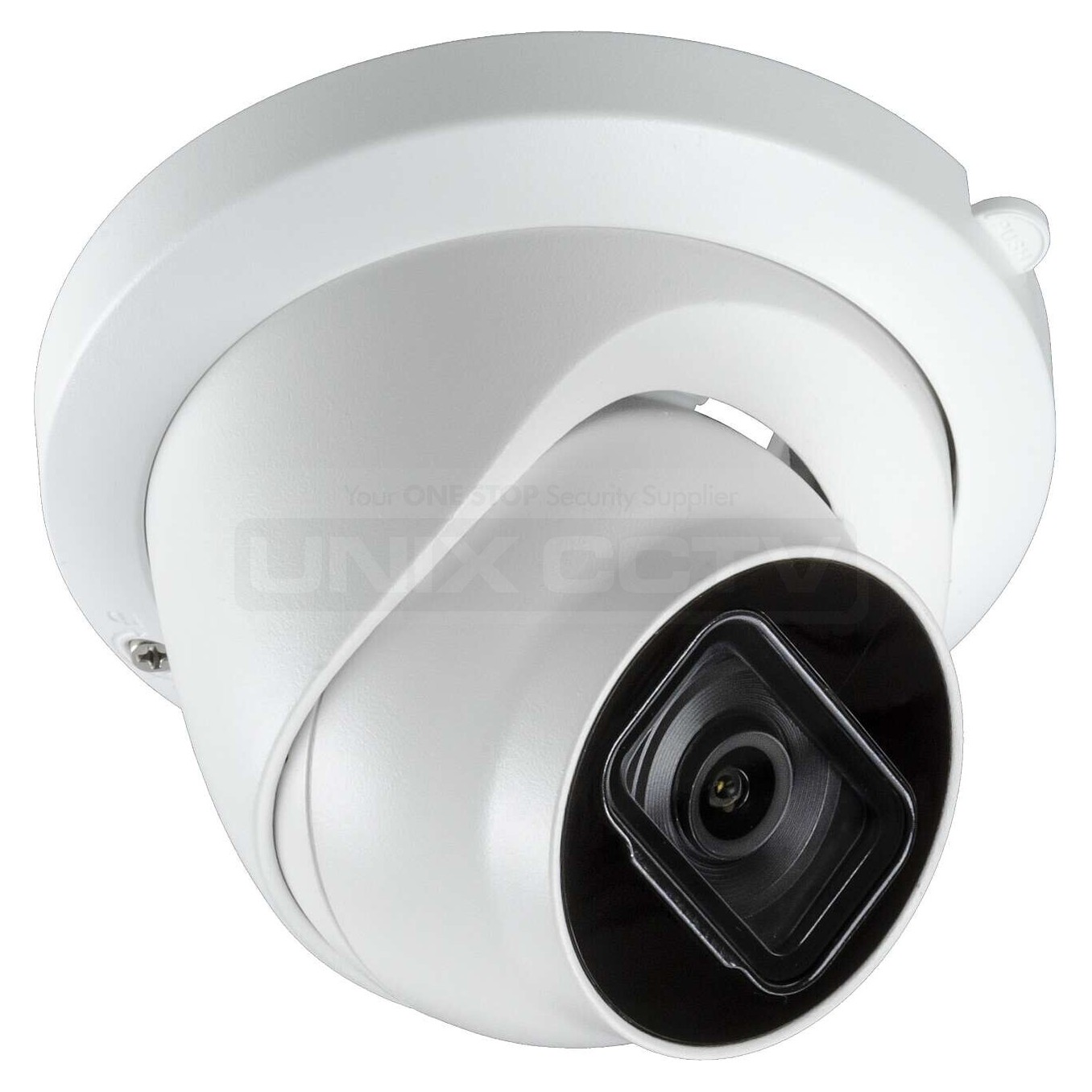

Eyemax CIU-E5132-W28 E5132 | 5MP 4-In-1 Outdoor IR Turret Camera, Fixed Lens, UL-Listed, IR Range up to 98ft (30m), IP67, DC 12V

Max 25 fps@5MP (16:9 video output) &buil; CVI / CVBS / AHD / TVI switchable • 2.8 mm fixed lens • Max. IR length 30 m, Smart IR • IP67, DC12V

Mount Accessories

Wall Mount Bracket	CWB-E203W
Junction Box	CJB-E136

Camera
Image Sensor	1/2.7 inch CMOS
Max. Resolution	2880 (H) × 1620 (V)
Pixel	5MP
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s
S/N Ratio	65 dB
Min. Illumination	0.01 Lux/F1.6, 30IRE, 0 Lux IR on
Illumination Distance	30 m (98.4 ft)
Illuminator On/Off Control	Auto; manual
Illuminator Number	1
Pan / Tilt / Rotation Range	Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens
Lens Type	Fixed-focal
Mount Type	M12
Focal Length	2.8 mm
Max. Aperture	F1.6
Field of View	2.8 mm: 132° × 111° × 58° (diagonal × horizontal × vertical)
Iris Type	Fixed iris
Close Focus Distance	2.8 mm: 0.9 m (3.0 ft)
DORI Distance	Detect : 63.6m (208.7 ft) Observe : 25.4m (83.3 ft) Recognize : 12.7 m (41.7 ft) Identify : 6.4 m (21.0ft)
Video
Frame Rate (CVI)	PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps
Frame Rate (AHD)	PAL: 4M@25 fps; NTSC: 4M@30 fps
Frame Rate (TVI)	PAL: 4M@25 fps; NTSC: 4M@30 fps
Frame Rate (CVBS)	PAL: 960H; NTSC: 960H
Resolution	5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480)
Day/Night	Auto switch by ICR
BLC	BLC / HLC / DWDR
WDR	DWDR
White Balance	Auto; manual
Gain Control	Auto; manual
Noise Reduction	2D NR
Smart IR	Yes
Mirror	Off / On
Privacy Masking	Off / On (8 area, rectangle)
Certifications
Certifications	CE (EN55032:2015, EN 61000 ~ 3-2:2014, EN 61000 ~ 3-3:2013, N55024:2010+A1:2015, EN 55035:2017, EN50130 ~ 4:2011+A1:2014, EN 62368 ~ 1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4 ~ 2014) UL (UL60950 ~ 1+CAN/CSA C22.2 No.60950 ~ 1)
Port
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply	12V ±30% DC
Power Consumption	Max 3.2W (12V DC, IR on)
Environment
Operating Temperature	−40°C to +60°C (−40°F to 140°F); <95% (non-condensation)
Storage Temperature	−40°C to +60°C (−40°F to 140°F); <95% (non-condensation)
Protection Grade	IP67
Structure
Casing	Metal dome+metal cover+plastic decorative ring
Camera Dimensions	∅109.9 mm × 88.1 mm ( ∅4.33" × 3.47" )
Net Weight	0.33 kg (0.73 lb)
Gross Weight	0.44 kg (0.97 lb)
