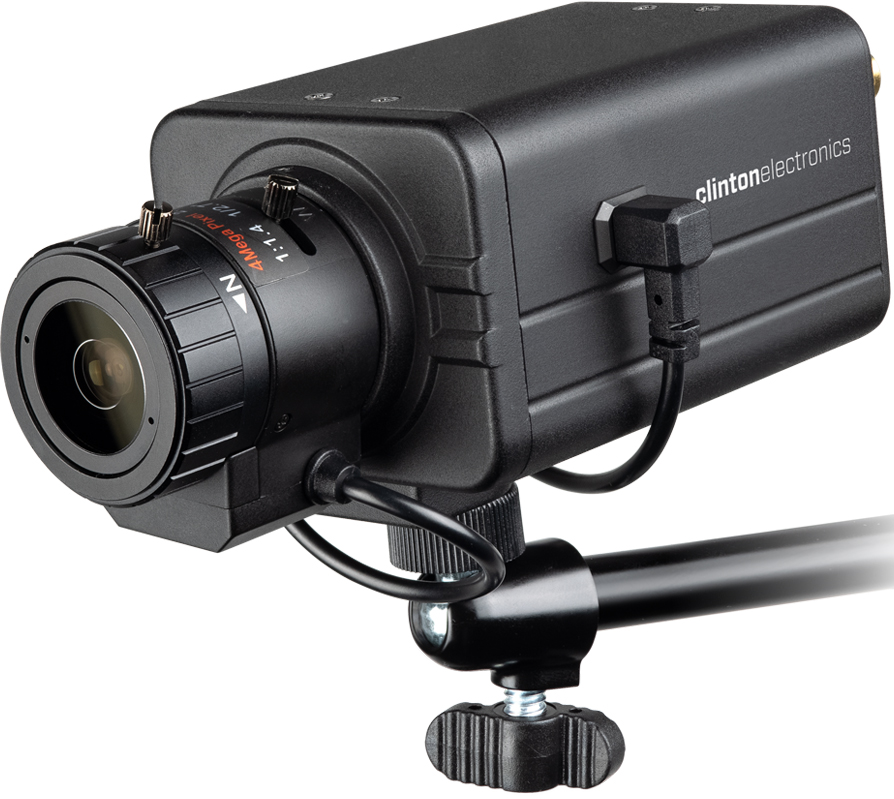

Clinton Electronics CE-X1QHD 4MP EX-SDI True D/N Box Camera + Lens

Additional View

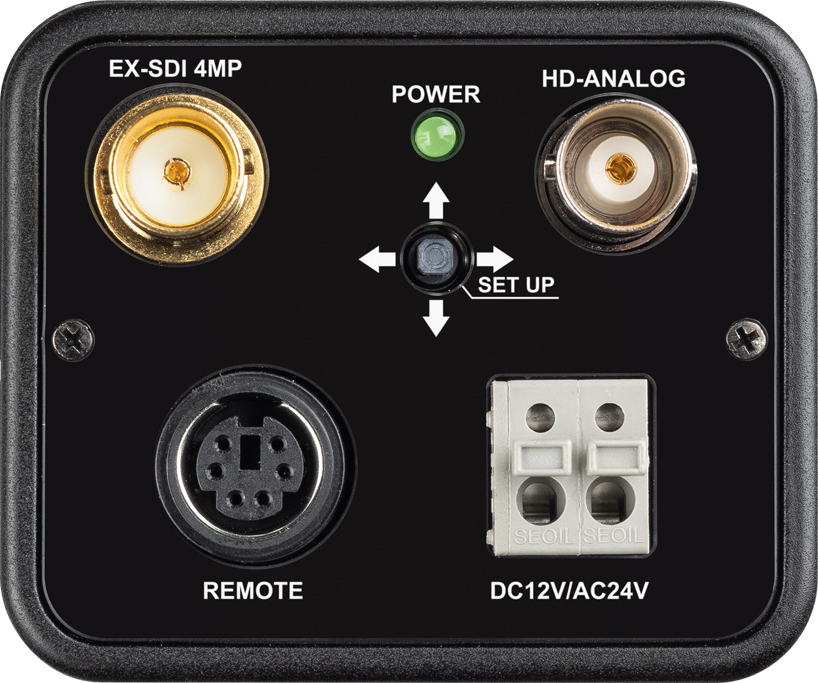

DUAL OUTPUTS

Get the best of both worlds with 4MP EX-SDI 2.0 and HD Analog video outputs.

DIN JACK

Make adjustments to the camera OSD menu easier by plugging in a CE-REMOTE to the DIN Jack.

4MP LENS INCLUDED

Includes a 2.8~12mm (ƒ1.4) True D/N lens, perfect for a wide-range of applications.

Model	CE-X1QHD
Camera
Image Sensor:	1/2.8" SONY Starvis 5.14MP CMOS Sensor
Resolution:	Quad HD 1440p / 4MP
Effective Pixels:	2616 (H) x 1964 (V)
Scanning System:	Progressive Scan
S/N Ratio:	More than 52dB (AGC Off)
Frame Rate:	1440p: 30 FPS 1080p: 30 FPS
Minimum Illumination:	Color: 1 Lux Black and White: 0.1 Lux
Shutter Speed:	1/30 - 1/30,000 sec. / AUTO
Lens
Mount Type:	CS or S Mount
Focal Range:	2.8~12mm
Max. Aperture Ratio:	ƒ1.4
Field Of View:	89° - 30° (Horizontal) 64° - 21° (Vertical) 115° - 36° (Diagonal)
True Day / Night:	Yes
DSP
DSP Version:	EXHD 4MP
Menu Control
Joystick:	Built-in
DIN Port:	For use with optional CE-REMOTE
UCC:	UCC allows camera adjustments (OSD settings) to be made remotely through a UCC equipped DVR channel
Connections
HD Video Output:	1 BNC Output (Gold): 4MP EX-SDI 2.0 / 2MP EX-SDI 2.0, EX-SDI & HD-SDI selectable
Analog Video Output:	1 BNC Output (Silver): CVBS, A_HD, C_VI, T_VI Selectable
Remote Control Input:	1 DIN Input
Power Requirements
Type:	DC12V, AC24V, or PoC (Power over Coax)
Power Consumption:	DC12V: 230mA (Max +/- 10%) AC24V: 80mA (Max +/- 10%) PoC: 45mA (Max +/- 10%)
Materials
Housing:	Aluminum
Environmental
Operating Temperature:	14° to 122° F (-10° to 50° C)
Operating Humidity:	0% to 90% RH
Standards
FCC:	Part 15B, Class A
RoHS:	Compliant
What�s Included
	2.8~12mm (4MP) CS Mount Lens
Physical
Product Dimensions:	5.45" (L) x 2.31" (W) x 2.21" (H) 138.43mm (L) x 58.67mm (W) x 50.8mm (H)
Weight:	0.7 lbs (0.35 kgs)
