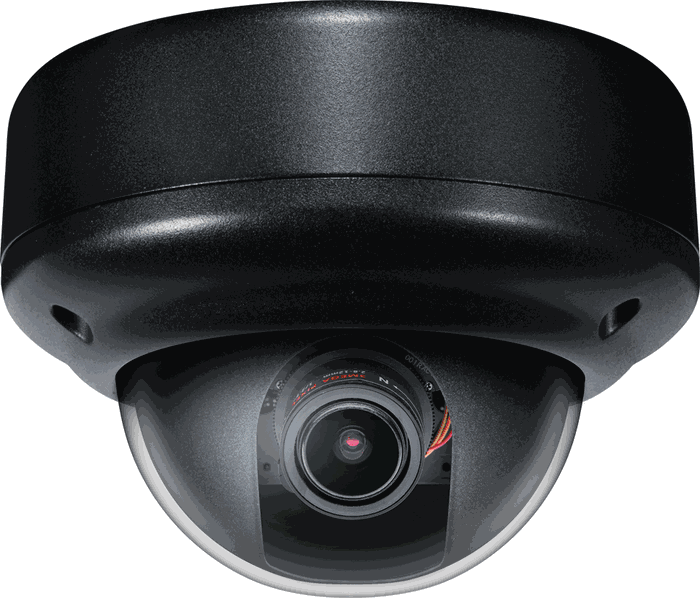

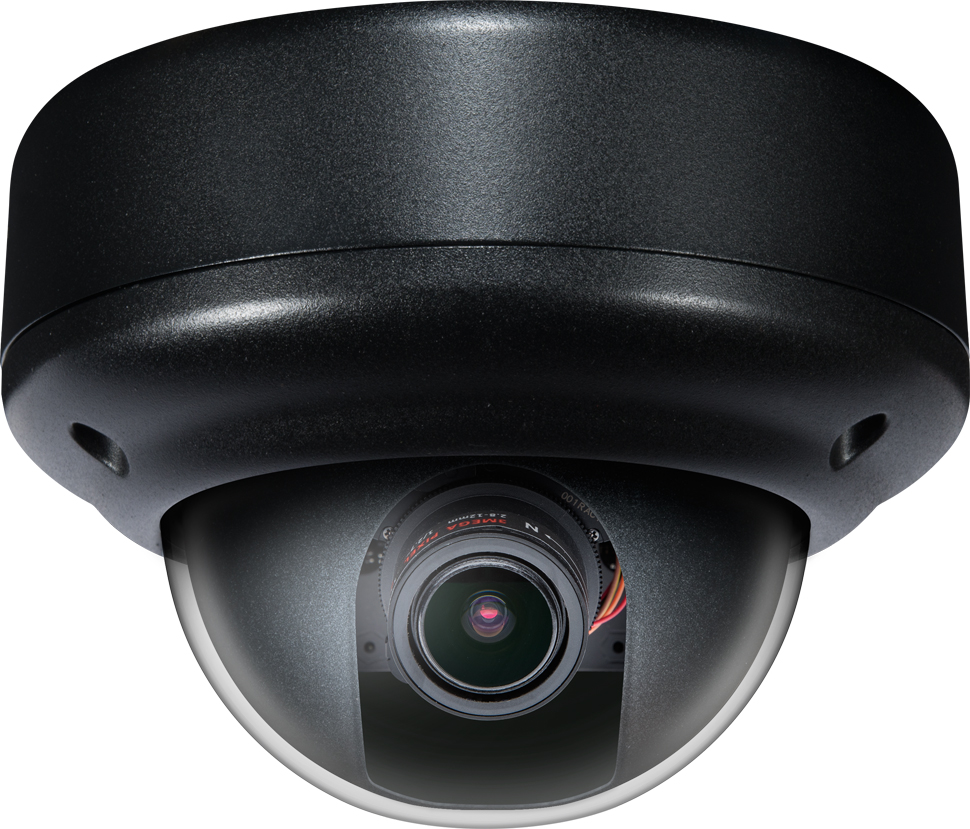

Clinton Electronics CE-VX1HDB EX-SDI 2.0 Vandal X - Black

MOTORIZED 3MP LENS 2.8~12mm (ƒ1.4) Motorized True D/N Auto Focus Lens.	DUAL OUTPUTS Get the best of both worlds with EX-SDI 2.0 and HD Analog video outputs.
30 FPS / 30 FPS WDR Full HD 1080p live view @ 30 FPS (30 FPS with WDR turned on).	Focusing Made Easy Our new Motorized Zoom & Auto Focus equipped cameras now make focusing easy! Simply set the desired focal distance and let the camera automatically adjust the focus. Zoom and focus adjustments can be made using the built-in joystick or optional CE-REMOTE.

Model	CE-VX1HDB
Camera
Image Sensor	1/2.8" SONY Starvis 2.13 Megapixel CMOS Sensor
Resolution	1080p
Effective Pixels	1945 (H) x 1097 (V)
Scanning System	Progressive Scan
S/N Ratio	More than 52dB (AGC Off)
Frame Rate	1080p: 30 FPS 720p: 60, 30 FPS
Minimum Illumination	Color: 0.01 Lux (Sens-Up x32) Black and White: 0.001 Lux (Sens-Up x32)
Shutter Speed	1/30 - 1/30,000 sec. / AUTO
Lens
Type	Motorized Vari-Focal Autofocus
Focal Range	2.8~12mm
Max. Aperture Ratio	ƒ1.4
Field Of View	108� ~ 33� (Horizontal)
True Day / Night	Yes
DSP
DSP Version	EXHD 2.0
Menu Control
Joystick	Built-in
DIN Port	For use with optional CE-REMOTE
UCC	UCC allows camera adjustments (zoom/focus & OSD settings) to be made remotely through a UCC equpped DVR channel
Connections
HD Video Output	1 BNC Output (Black & Gold): EX-SDI 2.0, EX-SDI, HD-SDI Selectable
Analog Video Output	1 BNC Output (Green & Silver): CVBS (1,000 TVL), A_HD, C_VI, T_VI Selectable
Remote Control Input	1 DIN Input
Power Requirements
Type	DC12V and AC24V
Power Consumption	DC12V: 4.2 Watts (0.35 Amp) AC24V: 4.8 Watts (0.2 Amp)
Physical
Product Dimensions	5.74" (Dia.) x 4.13" (H) 145.8mm (Dia.) x 104.9mm (H)
Product Weight	1.75 lbs (793.787 g)
Materials
Housing	Aluminum
Dome	Polycarbonate
Environmental
Weather Rating	IP68
Operating Temperature	-20° to 122° F (-28.8° to 50° C)
Operating Humidity	0% to 95% RH
Standards
FCC	Part 15B, Class A
RoHS	Compliant
UL	Listed
What's Included
	Torx Wrench 4 Mounting Screws 4 Wall Anchors Mounting Template
Warranty & Support
Warranty	3 Year Warranty w/1st Year Advance Replacement
Technical Support	Free Lifetime Technical Support via Phone (1-800-549-6393)
