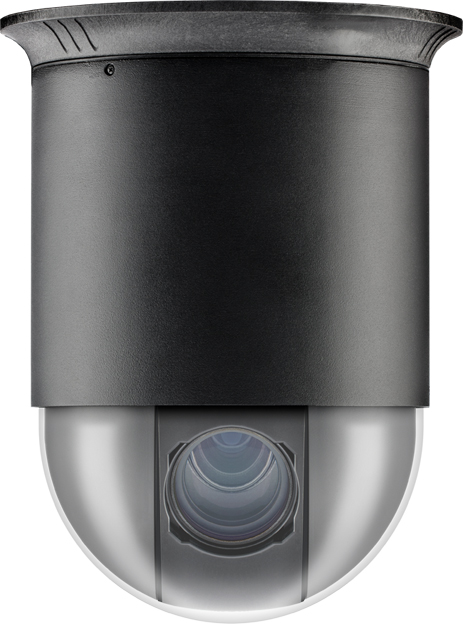

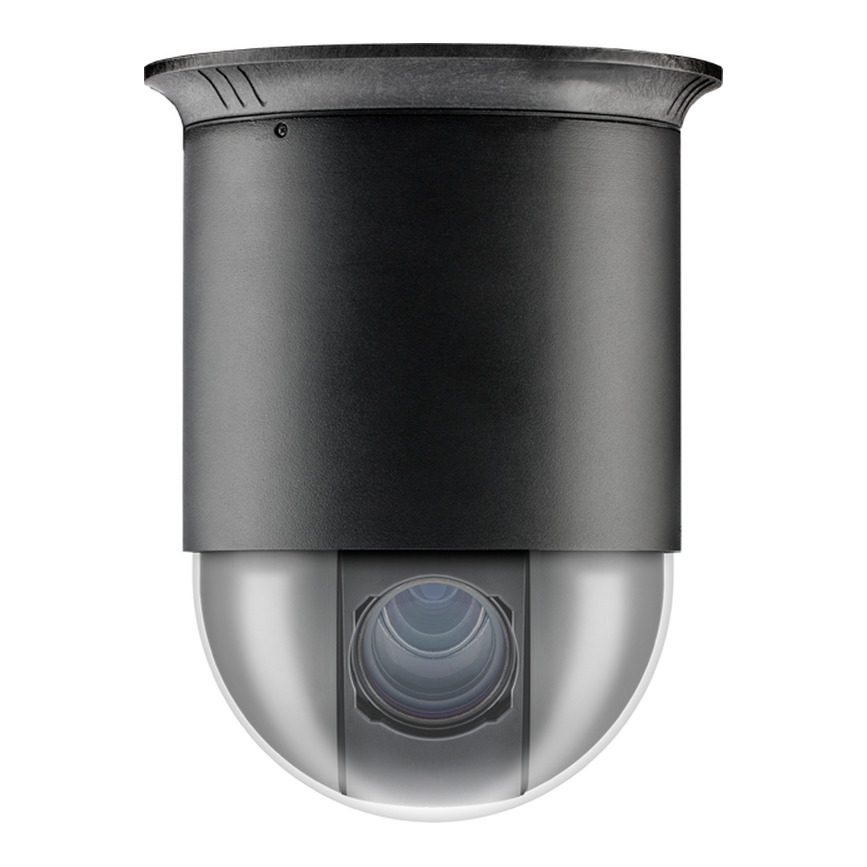

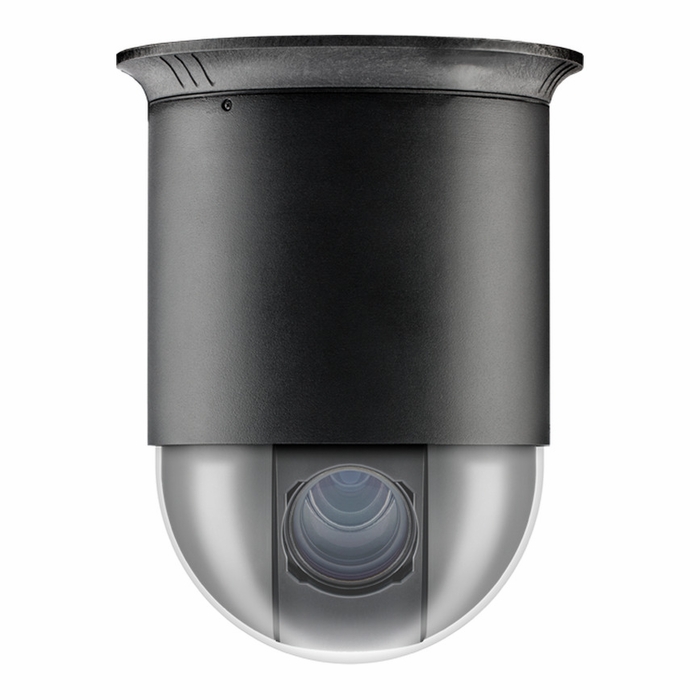

Clinton Electronics CE-PTZ30XHD-IN HD-SDI TDN Indoor 30x PTZ

SKU#

:

CE-PTZ30XHD-IN

Availability

:

Usually ships the next business day

Power Supply

:

Quantity

:

Description
Features
Specifications
Downloads
Product Review

Clinton Electronics CE-PTZ30XHD-IN HD-SDI TDN Indoor 30x PTZ

1/3” 2MP Panasonic CMOS sensor
1080p @ 30fps, 720p @ 30/60fps
HD-SDI (1080p) video output
4.3~129mm (ƒ1.6~ƒ4.7) True D/N Lens
30x Optical Zoom & 32x Digital Zoom
255 Presets, 8 Tours, 8 Scans, 4 Patterns, 16 Areas, 4 Alarms
360° Pan Rotation/ 0° to 90° Tilt
Ceiling mount bracket included
RS-422/485 communication
4 Alarm Inputs / 2 Alarm Outputs
AC24V / DC24V (Power Supply sold separately)
Multiple Protocols supported
Airflow Control System

Model	CE-PTZ30XHD-IN
Camera
Image Sensor	1/3” 2MP PANASONIC CMOS sensor
Resolution	1080p
Effective Pixels	1944 (H) x 1092 (V) = 2.12 Megapixels
Scanning System	Progressive Scan
S/N Ratio	More than 50dB (AGC Off)
Frame Rate	1080p: 30 FPS 720p: 30/60 FPS
Minimum Illumination	Day: 0.5 Lux Night: 0.1 Lux
Shutter Speed	1/30(25) – 1/30,000 sec.
Lens
Type	Motorized Vari-Focal Auto-Focusing
Focal Range	4.3~129mm
Aperture Ratio	ƒ1.6~ƒ4.7
True Day / Night	Yes
Angle of View (Horizontal)	Wide: 58.9° Tele: 2.11°
Zoom Ratio	Optical: 30x Digital: 32x
Communication
Data Type	RS-485 or RS-422
Protocols	Clinton, Pelco D, Pelco P, EZP
Baudrate	2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
Connections
HD Video Output	1 BNC Output (HD-SDI)
Alarm	4 Inputs / 2 Outputs
Power Requirements
Type	DC24V / AC24V
Power Consumption	Operation 8W (400mA) / Max 11W (500 mA) w/ Fan On
Physical
Product Dimensions	5.875” (Dia.) x 7.75” (H) 149.225mm (Dia.) x 196.85mm (H)
Product Weight	4 lbs / 1.814 kg
Materials
Housing	Polycarbonate
Dome	Polycarbonate
Environmental
Operating Temperature	14° to 122° F (-10° to 50° C)
Operating Humidity	0% to 90% RH
What’s Included
	Mounting Base 3 Mounting Screws 3 Wall Anchors 1 Base Plate Screw
Warranty & Support
Warranty	3 Year Warranty w/1st Year Advance Replacement
Technical Support	Free Lifetime Technical Support via Phone (1-800-549-6393)
