High Definition Pan Tilt Zoom EX-SDI and HD-SDI Cameras Full 1080p Resolution

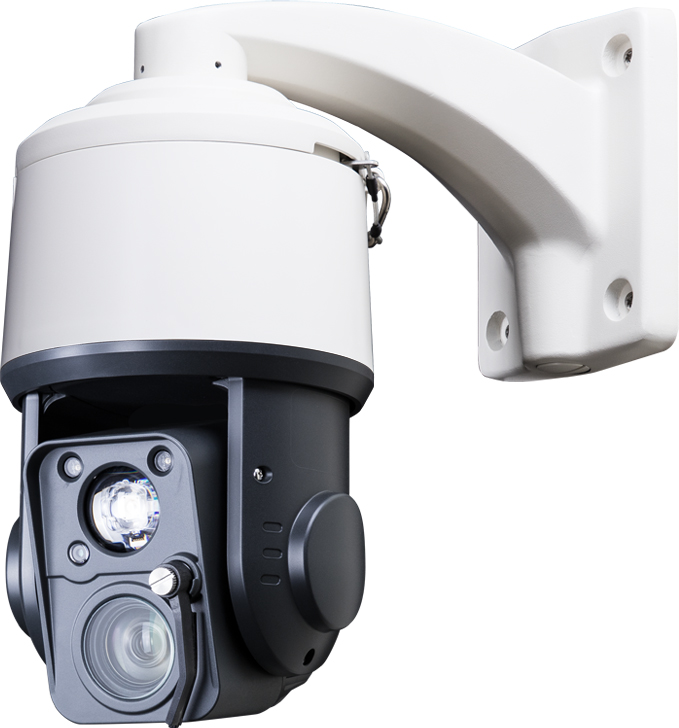

Clinton Electronics CE-PTZ20XHDR HD-SDI TDN 20x PTZ w/ Zoom IR

Additional View

Clinton Electronics CE-PTZ20XHDR HD-SDI TDN 20x PTZ w/ Zoom IR

SKU#

:

CE-PTZ20XHDR

Availability

:

Usually ships the next business day

Power Supply

:

Quantity

:

Description
Features
Specifications
Downloads
Product Review

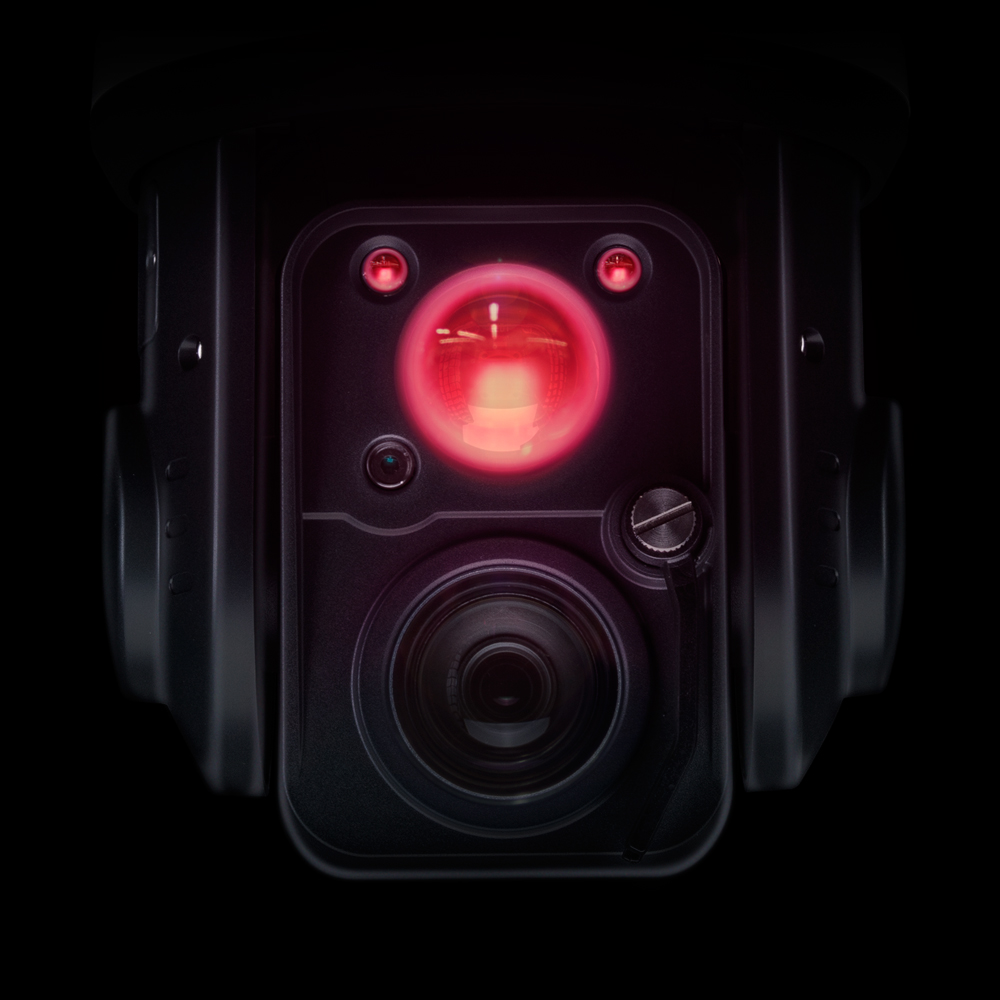

IR ZOOM LENS

Motorized IR Zoom lens that zooms in and out with the camera lens, providing a clear night time image up to a distance of 450 feet.

DUAL OUTPUTS

Get the best of both worlds with HD-SDI and analog (700 TVL) video outputs.

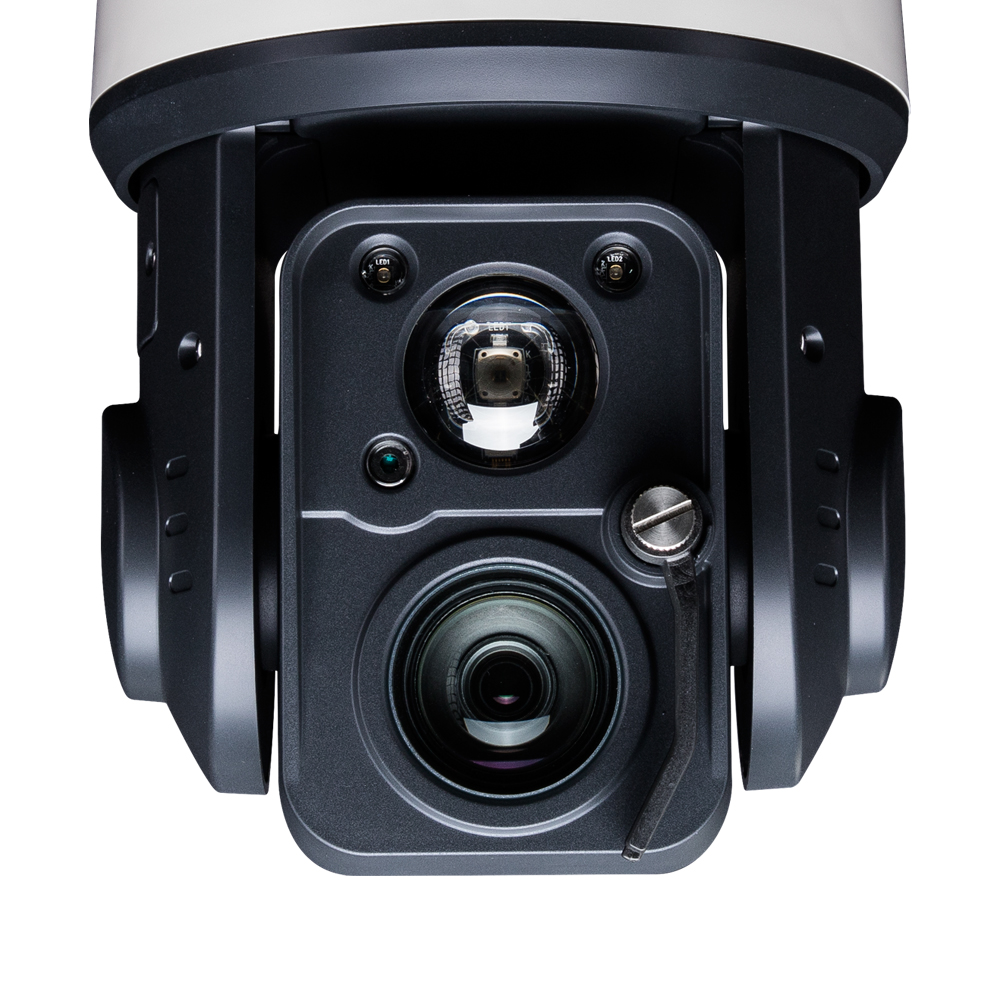

DOME-LESS DESIGN

The built-in wiper system keeps the camera lens clear of moisture and dust.

1/3" PANASONIC 2 Megapixel CMOS Sensor
1080p at 60 or 30 FPS; 720p at 60 FPS
HD Over Coax (1080p HD-SDI) or Analog (700 TVL)
5.2~104mm (ƒ1.5~ƒ3.5) True D/N Lens
20x Optical Zoom and 32x Digital Zoom
Temperature Controlled by Heater and Fan
255 Presets, 8 Tours, 8 Scans, 4 Patterns, 16 Areas, and 4 Alarms
360° Horizontal (Pan) and -8° to 188° Vertical (Tilt)
1 Motorized IR Zoom Lens with Adjustable Intensity and Distance, 2 Fixed IR LEDs for improved wide angle night viewing
Approximate IR Distance 450'
Optically-perfect flat viewing window prevents blooming and smearing
IP67 Weather-rated polycarbonate housing
Safety Cable prevents the PTZ from falling during Installation and Maintenance
Built-in wiper keeps lens clear of moisture and dust
Includes wall bracket
RS-485 or RS-422 Communication
4 Alarm Inputs / 2 Alarm Outputs
DC24V/AC24V (Power Supply Sold Separately)
1.5" NPT Threaded Male End
Supports Multiple Protocols

Model	CE-PTZ20XHDR
Camera
Image Sensor	1/3" PANASONIC CMOS
Resolution	HD-SDI: 1080p CVBS: 700 TVL
Effective Pixels	1944 (H) x 1092 (V) = 2.12 Megapixels
Scanning System	Progressive Scan
S/N Ratio	More than 50dB (AGC Off)
Frame Rate	1080p: 60 or 30 FPS
Minimum Illumination	Day: 0.5 Lux (1/30 sec.) Night: 0.1 Lux(1/30 sec.)
Shutter Speed	1/30(25) – 1/30,000 sec.
Lens
Type	Motorized Vari-Focal Auto-Focusing
Focal Range	5.2~104mm
Aperture Ratio	ƒ1.5~ƒ3.5
True Day / Night	Yes
Angle of View (Horizontal)	Wide: 56.4° Tele: 3.1°
Zoom Ratio	Optical: 20x Digital: 32x
IR LEDs
Quantity	1 Motorized IR Zoom Lens with Adjustable Intensity and Distance 2 Fixed IR LEDs
Communication
Data Type	RS-485 or RS-422
Protocols	Clinton, Pelco D, Pelco P, WTZ, EZP
Baudrate	2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
Connections
HD Video Output	1 BNC Output (HD-SDI)
Composite Video Output	1 BNC Output
Audio	1 Input / 1 Output
Alarm	4 Inputs / 2 Outputs
Power Requirements
Type	DC24V / AC24V
Power Consumption	DC24V: 26.4 Watts (1.1 Amps) AC24V: 24 Watts (1 Amp)
Physical
Product Dimensions (Without Wall Bracket)	7.08" (Dia.) x 12.6" (H) 180mm (Dia.) x 322mm (H)
Product Dimensions (With Wall Bracket)	7.08" (W) x 14" (H) x 13" (D) 180mm (W) x 355.6mm (H) x 330.2mm (D)
Product Weight (Without Wall Bracket)	9.9 lbs (4.5 kg)
Product Weight (With Wall Bracket)	12.85 lbs (5.829 kg)
Materials
Interior	Aluminum
Exterior	Polycarbonate
Environmental
Weather Rating	IP67
Operating Temperature	-40° to 140° F (-40° to 60° C)
Operating Humidity	0% to 90% RH
What’s Included
	Wall Bracket Silicone Gasket Spare Wiper 2 Set Screws (M4x8) 4 Masonry Sleeve Anchors (1/4" x 2")
Warranty & Support
Warranty	3 Year Warranty w/1st Year Advance Replacement
Technical Support	Free Lifetime Technical Support via Phone (1-800-549-6393)
