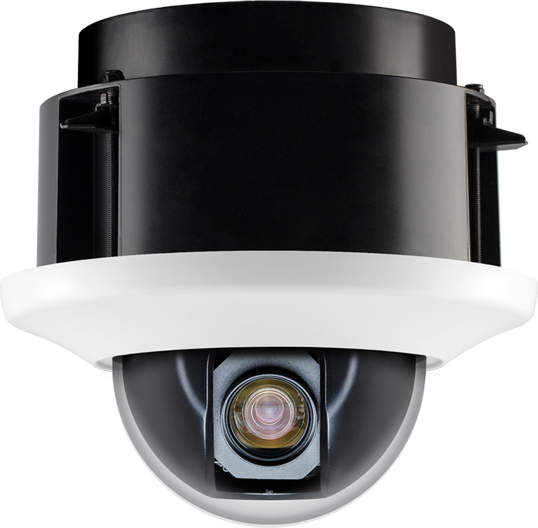

Clinton Electronics CE-PTZ10XHD-RM HD-SDI 10X Indoor Recess Mount PTZ

Call Toll Free 866-446-CCTV (2288) Mon-Fri 9am-6PM EST

0 Items $0.00

to USA & CANADA

One year warranty on all products

Model	CE-PTZ10XHD-RM
Camera
Image Sensor	1/3" PANASONIC CMOS
Resolution	HD-SDI: 1080p CVBS: 700 TVL
Effective Pixels	1944 (H) x 1092 (V) = 2.12 Megapixels
Scanning System	Progressive Scan
S/N Ratio	More than 50dB (AGC Off)
Frame Rate	1080p: 60 or 30 FPS 720P: 60 FPS
Minimum Illumination	Day: 0.5 Lux Night: 0.1 Lux
Shutter Speed	1/30(25) – 1/30,000 sec.
Lens
Type	Motorized Vari-Focal Auto-Focusing
Focal Range	5.1~51mm
Aperture Ratio	ƒ1.6~ƒ1.8
True Day / Night	Yes
Angle of View (Horizontal)	Wide: 54° Tele: 4.9°
Zoom Ratio	Optical: 10x Digital: 32x
Communication
Data Type	RS-485 or RS-422
Protocols	Clinton, Pelco D, Pelco P, AD
Baudrate	2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
Connections
HD Video Output	1 BNC Output (HD-SDI)
Composite Video Output	1 BNC Output
Alarm	2 Inputs / 2 Outputs
Power Requirements
Type	DC12V and AC24V
Power Consumption	DC12V: Operation 7.8 W (650mA) / Max 15.6 W (1.3A) AC24V: Operation 6 W (250mA) / Max 12 W (.5 A)
Physical
Product Dimensions	6.36” (Dia.) x 6.74” (H) 161.544mm (Dia.) x 171.196mm (H)
Product Weight	3 lbs (1.361 kg)
Materials
Housing	Polycarbonate
Dome	Polycarbonate
Environmental
Operating Temperature	14°F to 122°F (-10°C to 50°C)
Operating Humidity	0% to 90% RH
What’s Included
	Template Sticker Cable Harness
Warranty & Support
Warranty	3 Year Warranty w/1st Year Advance Replacement
Technical Support	Free Lifetime Technical Support via Phone (1-800-549-6393)
