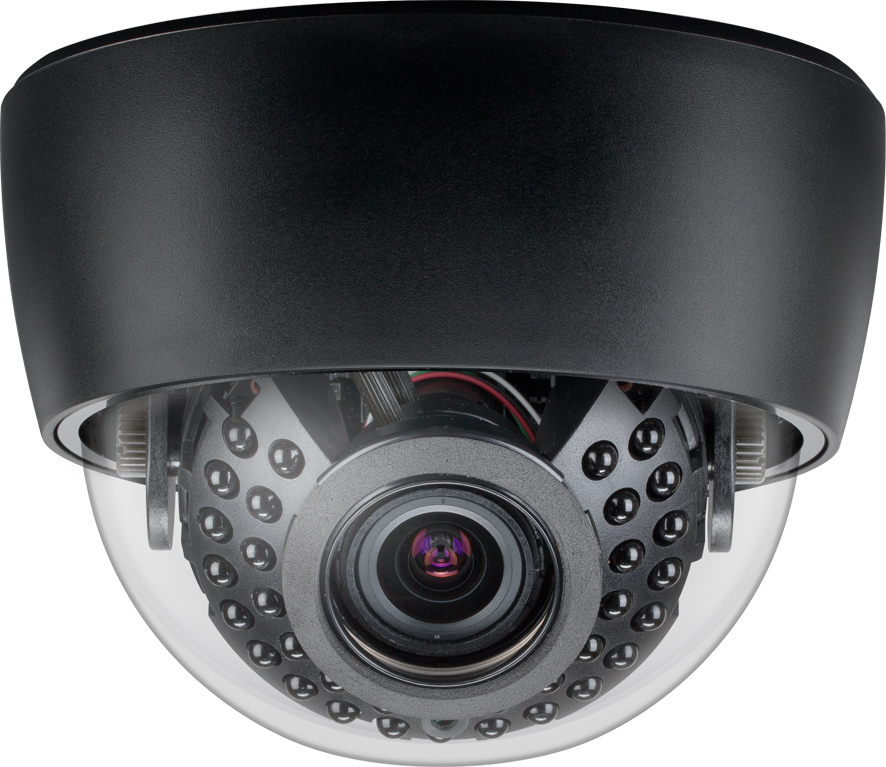

Clinton Electronics CE-IDX50B S7 IR IDX - Black

Model	CE-IDX50B
Camera
Image Sensor	1/3" SONY Exmor 1.3 Megapixel CMOS Sensor
Resolution	1000 TVL
Effective Pixels	1305 (H) x 1049 (V)
Scanning System	Progressive
S/N Ratio	52dB
Minimum Illumination	0.00001 Lux (Sens-Up x64)
Shutter Speed	1/60 - 1/60,000 sec.
Lens
Type	Vari-Focal
Focal Range	2.8~12mm
Max. Aperture Ratio	ƒ1.4
True Day / Night	Yes
IR LEDs
Quantity	29 IR LEDs
DSP
DSP Version	S7
Menu Control
Joystick	Built-in
DIN Port	For use with optional CE-REMOTE
Connections
Composite Video Output	1 BNC Output
Remote Control Input	1 DIN Input
Power Requirements
Type	DC12V and AC24V
Power Consumption	DC12V: 560mA (6.72 Watts) AC24V: 220mA (5.28 Watts)
Physical
Product Dimensions	4.8" (Dia.) x 3.7" (H) 121.9mm (Dia.) x 93.9mm (H)
Product Weight	0.7 lb (317.515 g)
Materials
Housing	Plastic
Dome	Polycarbonate
Mounting
Included Mounts	Includes Mounting Plate
Environmental
Operating Temperature	32° to 113° F (0° to 45° C)
Operating Humidity	0% to 90% RH
Standards
FCC	Part 15B, Class A
RoHS	Compliant
UL	Listed
What’s Included
	Mounting Plate Mounting Template BNC Test Cable 4 Mounting Screws
Warranty & Support
Warranty	3 Year Warranty w/1st Year Advance Replacement
Technical Support	Free Lifetime Technical Support via Phone (1-800-549-6393)
