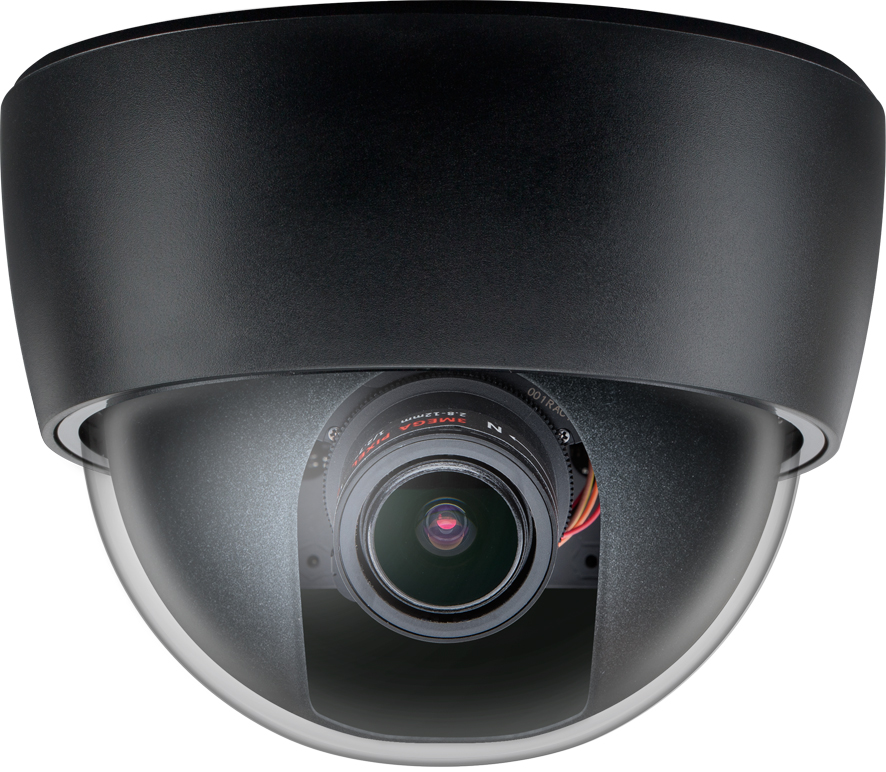

Clinton Electronics CE-IDX1QHDB 4MP EX-SDI 2.0 True D/N IDX - Black

MOTORIZED 5MP LENS 2.8~12mm (ƒ1.4) Motorized True D/N Auto Focus Lens.	DUAL OUTPUTS Get the best of both worlds with 4MP EX-SDI 2.0 and HD Analog video outputs.
FLEXIBLE INSTALL The IDX mounting plate installs on Single Gang, Double Gang, 3-1/4" & 3-1/2", or 4" Oct/Rd Conduit Boxes.	30 FPS / 30 FPS WDR Quad HD 1440p live view @ 30 FPS (30 FPS with WDR turned on).

Focusing Made Easy

Our new Motorized Zoom & Auto Focus equipped cameras now make focusing easy!

Simply set the desired focal distance and let the camera automatically adjust the focus. Zoom and focus adjustments can be made using the built-in joystick or optional CE-REMOTE.

Model	CE-IDX1QHDB
Camera
Image Sensor	1/2.8" SONY Starvis 5.14MP CMOS Sensor
Resolution	Quad HD: 1440p / 4MP
Effective Pixels	2560 (H) x 1440 (V)
Scanning System	Progressive Scan
S/N Ratio	More than 52dB (AGC Off)
Frame Rate	1440p: 30 FPS 1080p: 30 FPS
Minimum Illumination	Color: 1 Lux Black and White: 0.1 Lux
Shutter Speed	1/30 - 1/30,000 sec. / AUTO
Lens
Type	Motorized Vari-Focal Autofocus
Focal Range	2.8~12mm
Max. Aperture Ratio	ƒ1.4
Field Of View	91.4° ~ 32° (Horizontal)
True Day / Night	Yes
DSP
DSP Version	EXHD 4MP
Menu Control
Joystick	Built-in
DIN Port	For use with optional CE-REMOTE
UCC	UCC allows camera adjustments (zoom/focus & OSD settings) to be made remotely through a UCC equpped DVR channel
Connections
HD Video Output	1 BNC Output (Black & Gold): 4MP EX-SDI 2.0 / 2MP EX-SDI 2.0, EX-SDI & HD-SDI Selectable
Analog Video Output	1 BNC Output (Green & Silver): CVBS (1,000 TVL), A_HD, C_VI, T_VI Selectable
Remote Control Input	1 DIN Input
Power Requirements
Type	DC12V and AC24V
Power Consumption	DC12V: Max. 650mA (0.65A) AC24V: Max. 250mA (0.25A)
Physical
Product Dimensions	4.80" (Dia.) x 3.70" (H) 121.9mm (Dia.) x 93.9mm (H)
Product Weight	0.6 lbs (0.27 g)
Materials
Housing	Plastic
Dome	Polycarbonate
Mounting
Included Mounts	Includes Mounting Plate
Mounts to	Single Gang, Double Gang, 3-1/4" & 3-1/2", or 4" Oct/Rd Conduit Boxes
Standards
FCC	Part 15B, Class A
RoHS	Compliant
UL	Listed
What抯 Included
	Mounting Plate Mounting Template BNC Test Cable 4 Mounting Screws
Warranty & Support
Warranty	3 Year Warranty w/1st Year Advance Replacement
Technical Support	Free Lifetime Technical Support via Phone (1-800-549-6393)
