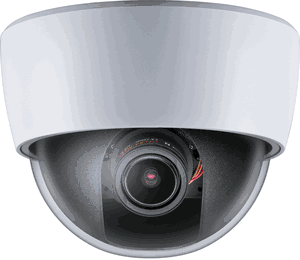

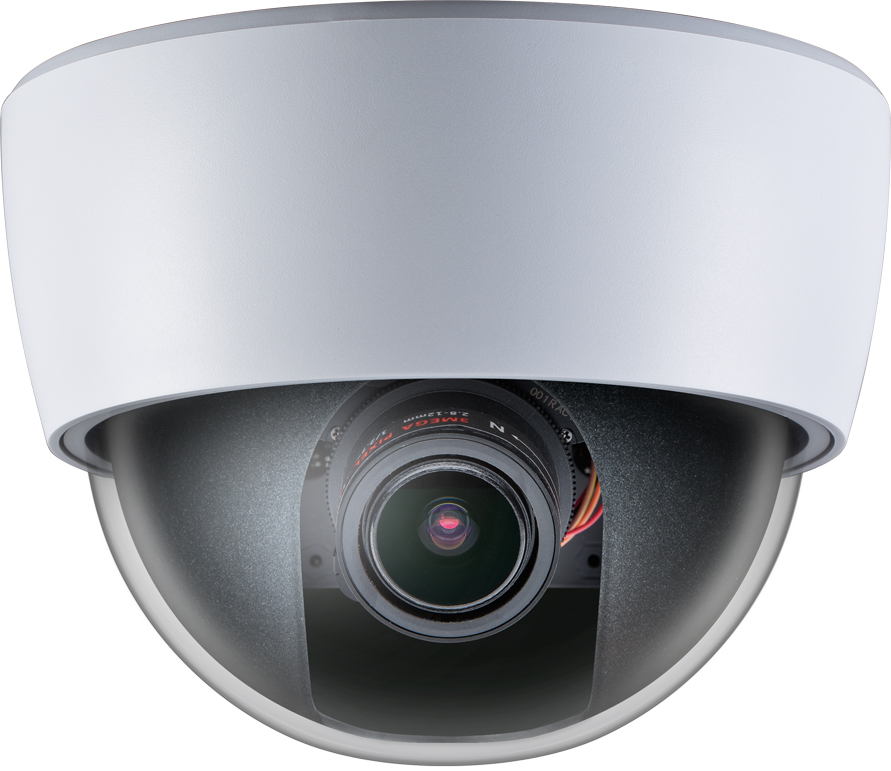

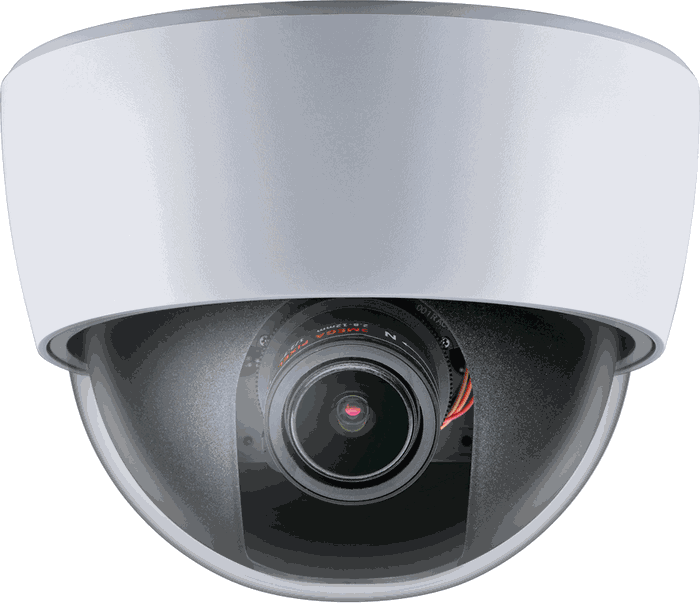

Clinton Electronics CE-IDX1HD EX-SDI 2.0 IDX - White

SKU#

:

CE-IDX1HD

Availability

:

Usually ships the next business day

Power Supply

:

Cable (video+power)

:

Quantity

:

Description
Features
Specifications
Downloads
Product Review

MOTORIZED 3MP LENS 2.8~12mm (ƒ1.4) Motorized True D/N Auto Focus Lens.	DUAL OUTPUTS Get the best of both worlds with EX-SDI 2.0 and HD Analog video outputs.
FLEXIBLE INSTALL The IDX mounting plate installs on Single Gang, Double Gang, 3-1/4" & 3-1/2", or 4" Oct/Rd Conduit Boxes.	30 FPS / 30 FPS WDR Full HD 1080p live view @ 30 FPS (30 FPS with WDR turned on).

Focusing Made Easy

Our new Motorized Zoom & Auto Focus equipped cameras now make focusing easy!

Simply set the desired focal distance and let the camera automatically adjust the focus. Zoom and focus adjustments can be made using the built-in joystick or optional CE-REMOTE.

1/2.8" SONY Starvis 2.13 Megapixel CMOS Sensor
Full HD 1080p Resolution
HD Over Coax Cable (HD-SDI, EX-SDI)
2.8~12mm (ƒ1.4) Motorized True D/N Autofocus Lens
Dual Video Output: EX-SDI 2.0 / HD-SDI & HD Analog outputs
EXHD 2.0 DSP (Digital Signal Processor)
OSD Menu Control via Built-In Joystick, CE-REMOTE or UCC*
DOL-WDR @ 30fps w/ Simultaneous Analog Output
3-Axis Adjustment
DC12V / AC24V
Mounts to: Single Gang, Double Gang, 3-1/4" & 3-1/2", or 4" Oct/Rd Conduit Boxes
UL Listed

Model	CE-IDX1HD
Camera
Image Sensor	1/2.8" SONY Starvis 2.13 Megapixel CMOS Sensor
Resolution	1080p
Effective Pixels	1945 (H) x 1097 (V)
Scanning System	Progressive Scan
S/N Ratio	More than 52dB (AGC Off)
Frame Rate	1080p: 30 FPS 720p: 60, 30 FPS
Minimum Illumination	Color: 0.01 Lux (Sens-Up x32) Black and White: 0.001 Lux (Sens-Up x32)
Shutter Speed	1/30 - 1/30,000 sec. / AUTO
Lens
Type	Motorized Vari-Focal Autofocus
Focal Range	2.8~12mm
Max. Aperture Ratio	ƒ1.4
Field Of View	108° ~ 33° (Horizontal)
True Day / Night	Yes
DSP
DSP Version	EXHD 2.0
Menu Control
Joystick	Built-in
DIN Port	For use with optional CE-REMOTE
UCC	Allows camera adjustments (zoom/focus & OSD settings) to be made remotely through a UCC equpped DVR channel
Connections
HD Video Output	1 BNC Output (Black & Gold): EX-SDI 2.0, EX-SDI, HD-SDI Selectable
Analog Video Output	1 BNC Output (Green & Silver): CVBS (1,000 TVL), A_HD, C_VI, T_VI Selectable
Remote Control Input	1 DIN Input
Power Requirements
Type	DC12V and AC24V
Power Consumption	DC12V: 4.32 Watts (0.36 Amp) AC24V: 5.76 Watts (0.24 Amp)
Physical
Product Dimensions	4.8" (Dia.) x 3.7" (H) 121.9mm (Dia.) x 93.9mm (H)
Product Weight	0.75 lb (340.194 g)
Materials
Housing	Plastic
Dome	Polycarbonate
Mounting
Included Mounts	Includes Mounting Plate
Mounts to	Single Gang, Double Gang, 3-1/4" & 3-1/2", or 4" Oct/Rd Conduit Boxes
Environmental
Operating Temperature	32° to 113° F (0° to 45° C)
Operating Humidity	0% to 90% RH
Standards
FCC	Part 15B, Class A
RoHS	Compliant
UL	Listed
What’s Included
	Mounting Plate Mounting Template BNC Test Cable 4 Mounting Screws
Warranty & Support
Warranty	3 Year Warranty w/1st Year Advance Replacement
Technical Support	Free Lifetime Technical Support via Phone (1-800-549-6393)
