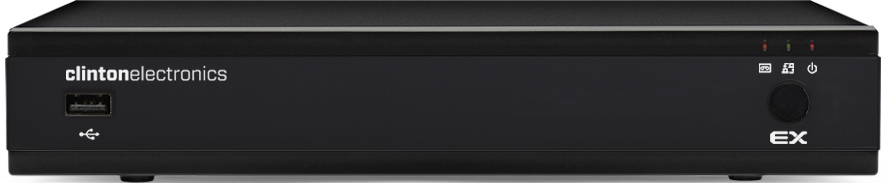

EX-SDI 2.0, EX-SDI, or HD-SDI
Record Full HD 1080p EX-SDI 2.0, EX-SDI, or HD-SDI on the same DVR.
1 Composite BNC spot monitor output.
CVMS Mobile App
CVMS Mobile (Clinton Video Management Software) allows you to connect to your Clinton Electronics H2L, Hybrid, FXR, or EX Series DVR from anywhere in the world. This free DVR app for iOS and Android comes loaded with features like multiplex view, video save function, and PTZ/UCC camera control. CVMS Mobile also lets you view live video, search recorded video, configure DVR settings, and save multiple DVRs to the built-in address book.
View Live & Quickly Search
Scroll up or down to search any number of channels all at once with the new color-coded timeline.
DVR Address Book
Connect to and organize multiple Clinton DVRs with thumbnail previews.
PTZ & UCC Control
Control 360° PTZ cameras or make camera adjustments using UCC.
Save Video Clips
Remotely backup video from your DVR to your phone.
Our Advanced Video Monitoring System (AVMS) makes it possible to monitor up to 256 cameras from one window while being able to open multiple windows at once. Utilize Popup Mode to drag windows to remote monitors creating the ultimate video wall. Whether you are connecting to one unit or a thousand, you will find that AVMS gives your organization everything needed to watch live, recorded or archived video. AVMS requires no licensing or maintenance fees and best of all it comes free with every Clinton DVR.
CONNECT TO MULTIPLE DVRs
See video the way you want to see it with customizable screens. Easily drag and drop desired cameras or entire DVRs to populate the screen. The screen can even be a mix of DVR formats; analog, hybrid and EX-SDI. The customized view configuration can be saved for later use.
Motion, time, and event are obvious ways to search— but we’re excited about the new and powerful thumbnail search, which allows you to drill down from a wide range of time to the very second. AVMS also features Mueseum Search, which allows you to draw a box over a specific region of interest, and search that area only for events.
AVMS isn’t just for viewing video, you can also instantly adjust DVR settings. Everything you can do at the DVR, can be done remotely: adjust recording rates, view HDD performace, set event actions and more! All without having to make a service call to the DVR.
- Record video: 240 FPS at 1080p (30 FPS per Channel)
- HDMI, VGA, and Analog (RCA) main monitor outputs
- Main Analog (RCA) Output can be configured as a spot monitor output
- Full HD 1920 x 1080 monitor output
- Auto detects signal type: EX-SDI 2.0, EX-SDI, or HD-SDI
- 8 Audio Inputs / 1 Audio Output
- Remotely access the DVR with free mobile app (CVMS) and PC software (AVMS)
- Local Back-up to USB or Remote Back-up to PC via AVMS Software
- 1 TB SATA HDD comes standard, larger HDD options available
|Video Input||8 Channels|
|Input Type||EX-SDI 2.0, EX-SDI, or HD-SDI BNC|
|Storage and Backup|
|Optional HDD||2TB, 3TB, 4TB, 8TB, or 10TB (1 HDD Slot)|
|Backup||Local: USB Flash Drive (Up to 32GB)|
Remote: AVMS Remote Software (Windows PC)
|Recording Frame Rate||240 FPS Global (30 FPS per channel)|
|Recording Resolution||Auto Detected by each channel (1080p, 720p)|
|Recording Quality||Highest / High / Normal / Low|
|Recording Mode||Time / Motion / Event|
|Video Output (Main)||1 VGA Output|
1 HDMI Output
1 Composite (RCA/BNC) Output
|Video Output (Spot)||Main RCA/BNC can be configured as a Spot Output (Analog)|
|Spot Configuration||Channels 1-8 (Sequenceable)|
|Live View||120 FPS|
|Multiplex View||1 / 4 / 7 / 9|
|Audio||8 RCA Inputs / 1 RCA Output|
|USB||2 Ports (1 Front, 1 Rear)|
|PTZ / Keyboard||RS485|
|Ethernet||1 RJ45 (100-1000 Mbps)|
|Playback Speed||x1, x2, x4, x8, x16|
|Mode||Quick, Calendar, Event, Overlapped List, Museum, Go to First / Last|
|Operating System||Embedded Linux|
|File Format||Proprietary DVR Format|
|Menu Control||IR Remote and Mouse|
|PTZ Support||Multiple Protocols Supported (including Clinton, Pelco, Panasonic, Kalatel, etc.)|
|Network Bandwidth||8 Mbps - 50 Kbps, SMS 1 Mbps minimum|
|Password Protection||2 Admin / 6 Users (DVR and Remote View)|
|PC||Includes AVMS Remote Software (Windows)|
|Mobile||CEC Connect App (iOS and Android)|
|Web Browser||Internet Explorer (Windows)|
|Power Supply||Includes DC12V (3A) Power Supply|
|Power Consumption||11.4 Watts (.95 Amp)|
|Product Dimensions||10.25" (W) x 9.375" (D) x 1.75" (H)|
260mm (W) x 238mm (D) x 44mm (H)
|Product Weight (Without HDD)||2.8 lbs (1.27 kg)|
|Operating Temperature||32° to 104° F (0° to 40° C)|
|Operating Humidity||20% to 80% RH|
|AVMS Remote Software Disc|
DC12V (3A) Power Supply
RCA to BNC Adapter
|Warranty & Support|
|Warranty||3 Year Warranty w/1st Year Advance Replacement|
|Technical Support||Free Lifetime Technical Support via Phone (1-800-549-6393)|
