 EX-SDI and HD-SDI Bullet Outdoor/Indoor Cameras with Nightvision Clinton Electronics CE-BZ1QHDB 4MP EX-SDI 2.0 True D/N IR Bullet - Black

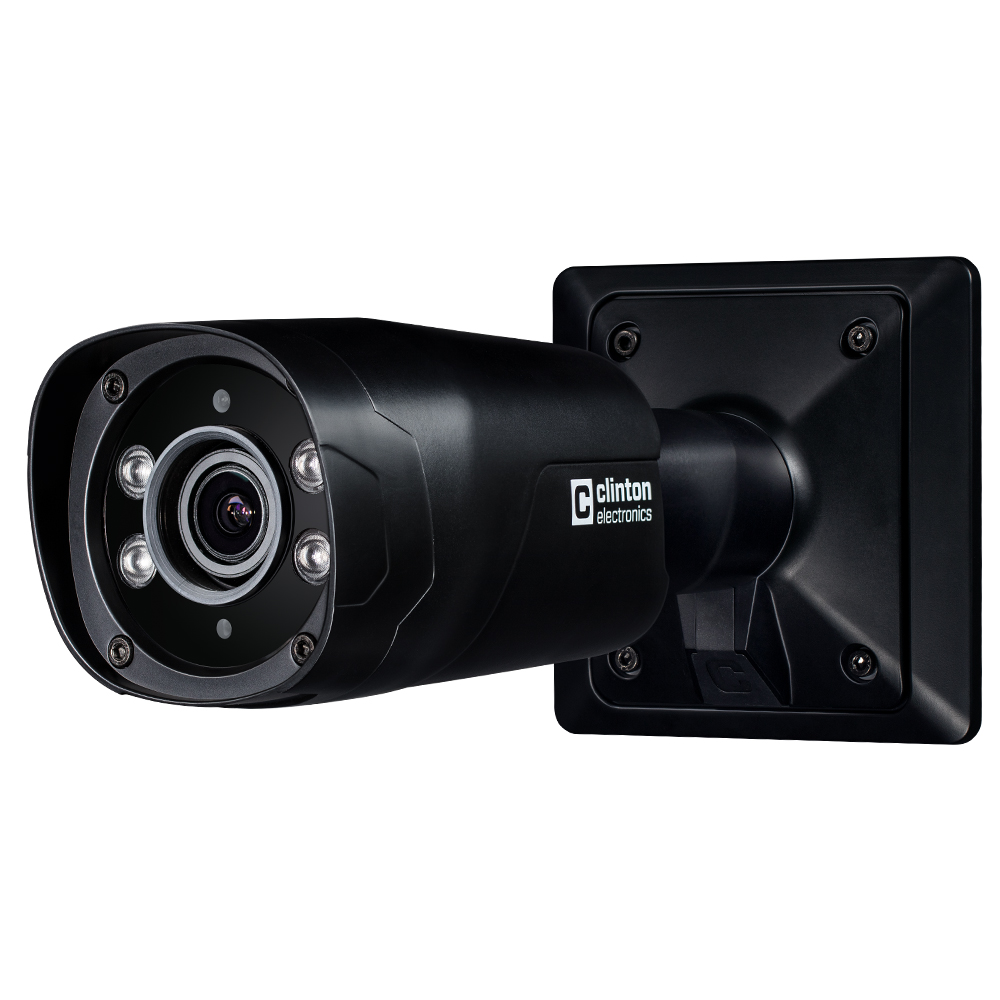

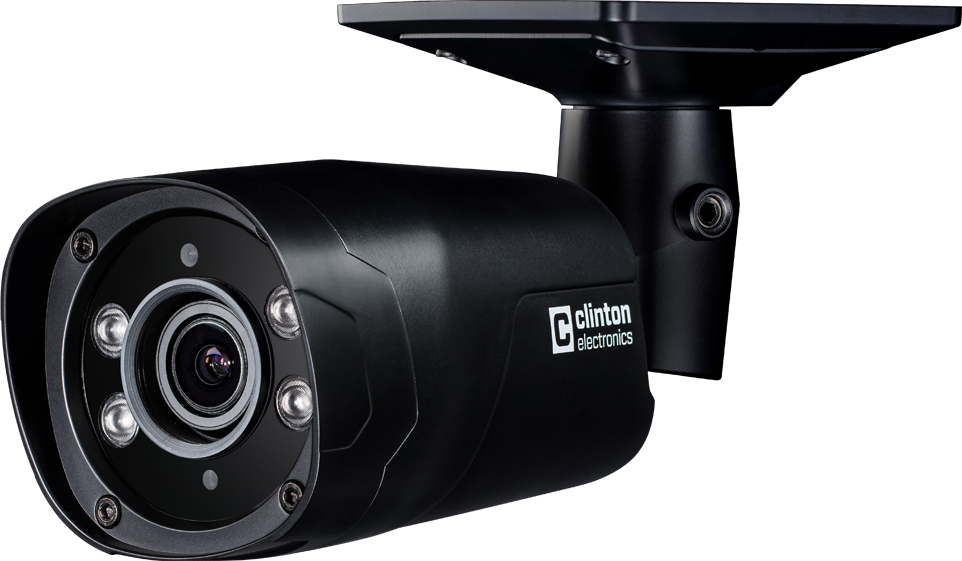

 Clinton Electronics CE-BZ1QHDB 4MP EX-SDI 2.0 True D/N IR Bullet - Black

| IP68 WEATHER RATEDConstant exposure to the elements is tough on any camera. Because the BZ series is IP68 weather rated, you no longer need to worry about adverse weather conditions.  | HI INTENSITY IR LEDsOne IR LED on the new BZ Series Bullet outputs as much light as eight standard IR LEDs, and the focusing lenses help evenly distribute the infrared light.  |
| AUTOFOCUSAll BZ cameras have Motorized Zoom & Auto Focus. Use the CE-REMOTE to set the focal length, and the autofocus lens will focus the scene to perfection.  | EASY INSTALLATIONBZ bullet cameras can be mounted to a variety of Conduit Boxes. Use the mounting hook to affix the camera in place and free both hands for screw fastening.  |
| EASY ADJUSTMENTSay goodbye to cumbersome brackets that require multiple set screws. Achieve any angle and lock the BZ camera in place with just one screw.  | DUAL VOLTAGE + RVMAll BZ Series Bullets are DC12V/AC24V and feature Rated Voltage Monitoring (RVM). The RVM LED indicator will illuminate to alert the installer of improper voltage.  |
- 1/2.8" SONY Starvis 5.14MP CMOS Sensor
- 1440p @ 30fps Over RG59 Coax
- 2.8~12mm (ƒ1.4) True D/N Autofocus Lens
- 4 High Intensity IR LEDs
- 4MP: EX-SDI 2.0 / 2MP: EX-SDI 2.0 & HD-SDI & HD Analog outputs
- EXHD 2.0 - 4MP DSP
- OSD Menu Control via CE-REMOTE or UCC* (CE-REMOTE required for Zoom/Focus Adjustments)
- DOL-WDR @ 30fps w/ Simultaneous Analog Output
- Mounts to large variety of Conduit Boxes
- RVM (Rated Voltage Monitoring)
- DC12V/AC24V
- IP68 Weather Rated
| Model | CE-BZ1QHDB |
| Camera | |
| Image Sensor | 1/2.8" SONY Starvis 5.14MP CMOS Sensor |
| Resolution | Quad HD: 1440p / 4MP |
| Effective Pixels | 2560 (H) x 1440 (V) |
| Scanning System | Progressive Scan |
| S/N Ratio | More than 52dB (AGC Off) |
| Frame Rate | 1440p: 30 FPS 1080p: 30 FPS |
| Minimum Illumination | Color: 1 Lux Black and White: 0.1 Lux |
| Shutter Speed | 1/30 - 1/30,000 sec. / AUTO |
| Lens | |
| Type | Motorized Vari-Focal Autofocus |
| Focal Range | 2.8~12mm |
| Max. Aperture Ratio | ƒ1.4 |
| Field Of View | 91.4° ~ 32° (Horizontal) |
| True Day/Night | Yes |
| IR LEDs | |
| Quantity | 4 High Intensity IR LEDs |
| DSP | |
| DSP Version | EXHD 4MP |
| Menu Control | |
| DIN Port | For use with CE-REMOTE (*CE-REMOTE required for Zoom/Focus Adjustments) |
| UCC | UCC allows camera adjustments (zoom/focus & OSD settings) to be made remotely through a UCC equpped DVR channel |
| Connections | |
| HD Video Output | 1 BNC Output (Black & Gold): 4MP EX-SDI 2.0 / 2MP EX-SDI 2.0, EX-SDI & HD-SDI Selectable |
| Analog Video Output | 1 BNC Output (Green & Silver): CVBS (1,000 TVL), A_HD, C_VI, T_VI Selectable |
| Remote Control Input | 1 DIN Input |
| Power Requirements | |
| Type | DC12V and AC24V |
| Power Consumption | DC12V: Max: 1,100mA ±10% (IRs On + Zoom/Focus) AC24V: Max: 450mA ±10% (IRs On + Zoom/Focus) |
| Physical | |
| Product Dimensions | 9.25" (L) x 5.25" (H) 234.95mm (L) x 133.35mm (H) |
| Product Weight | 2.35 lbs (1065.942 g) |
| Materials | |
| Housing | Aluminum |
| Environmental | |
| Weather Rating | IP68 |
| Operating Temperature | -40° to 122° F (-40° to 50° C) |
| Operating Humidity | 0% to 95% RH |
| What’s Included | |
| Mounting Plate 4 Phillips Screws (M5x25) 4 Allen Bolts (M4x8) 4 Plastic Washers 4 Drywall Anchors Foam Gasket 3mm Allen Wrench 5mm Allen Wrench | |
| Warranty & Support | |
| Warranty | 3 Year Warranty w/1st Year Advance Replacement |
| Technical Support | Free Lifetime Technical Support via Phone (1-800-549-6393) |
