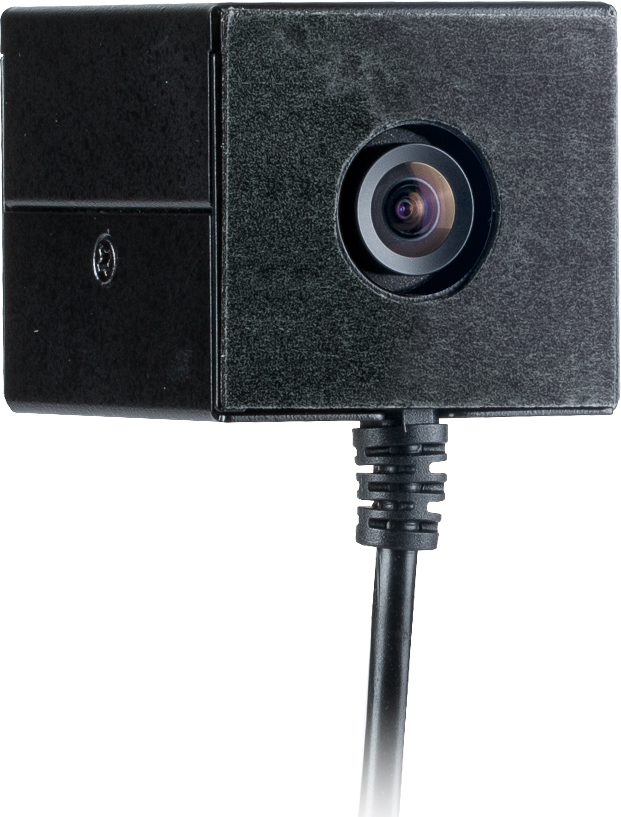

Clinton Electronics CE-BRCAMHD EX-SDI 2.0 Glass Mount Camera

Call Toll Free 866-446-CCTV (2288) Mon-Fri 9am-6PM EST

0 Items $0.00

to USA & CANADA

One year warranty on all products

Model	CE-BRCAMHD
Camera
Image Sensor	1/2.8" SONY Starvis 2.13 Megapixel CMOS Sensor
Resolution	Full HD 1080p
Effective Pixels	1944 (H) x 1092 (V)
Scanning System	Progressive Scan
S/N Ratio	More than 52dB (AGC Off)
Frame Rate	1080p: 30 FPS 720p: 30 FPS
Minimum Illumination	Color: 0.01 Lux (Sens-Up x32) Black and White: 0.001 Lux (Sens-Up x32)
Shutter Speed	1/30 – 1/30,000 sec. / AUTO
Lens
Type	Fixed
Focal Range	2.8mm
Max. Aperture Ratio	ƒ1.8
DSP
DSP Version	EXHD 2.0
Menu Control
Joystick	Located on Cable
UCC (Universal Coax Communication)	UCC (Universal Coax Communication) allows camera adjustments to be made remotely through a UCC equipped DVR channel.
Connections
HD Video Output	1 BNC Output (Black & Gold): EX-SDI 2.0, EX-SDI, HD-SDI Selectable
Analog Video Output	1 BNC Output (Green & Silver): CVBS (1,000 TVL), A_HD, C_VI, T_VI Selectable
Power Requirements
Type	DC12V and AC24V
Power Consumption	DC12V: 2.4 Watts (0.2 Amp) AC24V: 2.208 Watts (0.092 Amp)
Physical
Product Dimensions	1.93" (W) x 1.93" (H) x 2.06" (D) 49.02mm (W) x 49.02mm (H) x 52.32mm (D)
Product Weight	0.6 lb (0.27 kg)
Materials
Housing	Steel
Environmental
Operating Temperature	32° to 113° F (0° to 45° C)
Operating Humidity	0% to 90% RH
What’s Included
	3M Double-sided Adhesive
Warranty & Support
Warranty	3 Year Warranty w/1st Year Advance Replacement
Technical Support	Free Lifetime Technical Support via Phone (1-800-549-6393)
