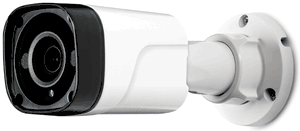

Clinton Electronics CE-B10HDL EX-SDI 2.0 Outdoor IR Mini Bullet

Additional View

Clinton Electronics CE-B10HDL EX-SDI 2.0 Outdoor IR Mini Bullet

Model	CE-B10HDL
Camera
Image Sensor	1/2.8" SONY Starvis 2.13 Megapixel CMOS Sensor
Resolution	1080p
Effective Pixels	1944 (H) x 1092 (V)
Scanning System	Progressive Scan
S/N Ratio	More than 52dB (AGC Off)
Frame Rate	1080p: 30 FPS 720p: 30 FPS
Minimum Illumination	0.001 Lux
Shutter Speed	1/30 – 1/60,000 sec. / AUTO
Lens
Type	Motorized Vari-Focal Autofocus
Focal Range	2.8~8mm
Max. Aperture Ratio	ƒ1.4
Field Of View	114.2° ~ 54.7° (Horizontal)
IR LEDs
Quantity	2 High Intensity IR LEDs
DSP
DSP Version	EXHD Lite 2.0
Menu Control
Joystick	Located on Cable
UCC	Allows camera adjustments (zoom/focus & OSD settings) to be made remotely through a UCC equipped DVR channel
Connections
HD Video Output	1 BNC Output (Black & Silver) EX-SDI 2.0, EX-SDI, HD-SDI Selectable
Analog Video Output	1 BNC Output (Yellow & Silver) CVBS (1,000 TVL), A_HD, C_VI, T_VI Selectable
Power Requirements
Type	DC12V
Power Consumption	DC12V: 0.45 Amps (450 mA) ±10% max.
Physical
Product Dimensions	6.12” x 2.63” x 2.59” 155.5mm x 67mm x 66mm
Product Weight	0.85 lbs (385 g)
Materials
Housing	Aluminum (camera body), Plastic (mounting plate)
Environmental
Weather Rating	IP68
Operating Temperature	-20°F to 122°F (-28°C to 50°C)
Operating Humidity	0% to 90% RH
What’s Included
	3 Phillips Screws 3 Drywall Anchors DC12V Pigtail/Barrel Plug Adapter 3mm Allen Wrench
Warranty & Support
Warranty	3 Year Warranty w/1st Year Advance Replacement
Technical Support	Free Lifetime Technical Support via Phone (1-800-549-6393)
