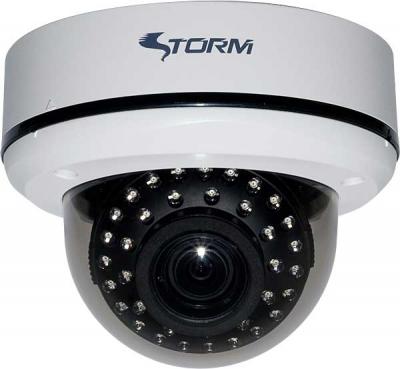

Eyemax presents revolutionary waterproof infrared dome camera, STORM IR 560 Series. Immersible and vandal-resistant IP-68 certified body makes this camera a great choice for any outdoor surveillance solution. On top of that, there are more reasons why you have to use STORM IR 560.

It's Water-proof + It's immersible

Water-damage won't be your service call anymore. IP68 Certified enclosure protects camera from all elements. We have an in-house fish tank with STORM camera in it for days and it runs good.

Easy Installation

Eyemax camera is all about something easy to deal with. No more drill thru the camera. Just install mount and Twist and Lock.

3-Axis? We give you 4-Axis

You will get all the benefits of 3-Axis Construction and more. On infrared dome you will be needing one more axis. The extra axis provides you with more flexible infrared coverage and easy access to lens adjustments.

Evenly spread Infrared Beam

Have you ever experienced with any infrared camera with intense and strong IR light, so you couldn't see anything in close range. STORM IR 560 series specially designed IR camera solved the problem. Close and long range infrared image can't be any better than STORM IR 560.

• 1/3” Sony Super HAD CCD
• 2.8~12mm Auto Iris Vari-focal Lens
• 560 TVL(Color) / 580 TVL (B/W) Horizontally
• OSD - On Screen Display - Easy camera setup
• 4-Axis Design : Flexible infrared coverage and easy accessto lens adjustment.
• 80ft Infrared Range / 35 IR LED
• STORM Case : IP68 Certified / Water & Vandal-proof
• Auto White Balance (AWB) / Back Light Compensation (BLC) / Auto Gain Control (AGC)
• DC 12V / 1700mA Recommended

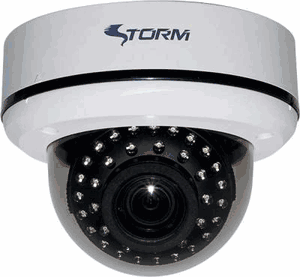

	STORM IR 560 : IT 5635V
Resolution	560(Color) / 580(B/W) TV Lines Horizontally
Sensor	Sony 1/3 inch Super HAD CCD
Total Pixels	811(H) × 508(V) 410K pixels (NTSC)
Effective Pixels	768(H) × 494(V) 380K pixels (NTSC)
Scanning System	2:1 Interlace
Synchronization	Internal
Frequency	Horizontal : 15.734Khz / Vertical : 59.94Hz
S/N (Y signal)	More than 50 dB (AGC off)
Video Output	CVBS : 1.0Vp-p / 75 ohm
Min. Illumination	0 Lux at IR On
White Balance	ATW / AWB / Manual (2,100°K ~ 10,500°K)
Electronic Shutter Speed	Auto / Manual 1/60 sec ~ 1/120,000 sec (NTSC)
O.S.D	Built-in
Backlight Compensation (BLC)	On / Off
Gain Control	On / Off
SDNR (Super Digital Noise Reduction)	N/C
Day & Night	Auto / Color / B/W
Sync	Internal Only
Motion Detection	On / Off (64 Area)
Privacy	On / Off (4 Zone)
Mirror	On / Off
Operating Temperature / Humidity	-10°C~+50°C(14°F ~ 122°F) / 30% ~ 80% RH
Storage Temperature / Humidity	-20°C~+60°C(-4°F ~ 140°F) / 20% ~ 90% RH
Power Source	DC 12V only / AC 24V / DC 12V Dual Power (Optional)
