Eyemax DO472M Medium Size, Hi-Res, Day/Night Camera With New Sony Super HAD CCD w/Next Chip

Description
Product Review

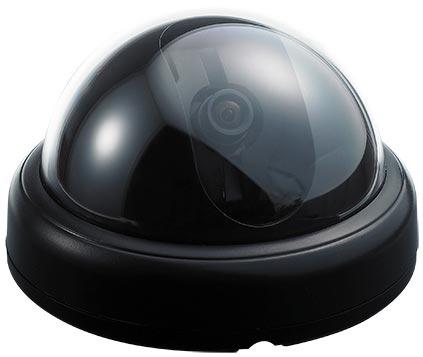

Affordable medium size dome camera with New Sony Super HAD CCD sensor with Next Chip. Clear 480 TV lines during normal conditions and 520 TV lines in low light conditions. Great camera for any indoor application. 3.6mm lens installed captures over 70 degree horizontal field of view.

FEATURES

1/3” Sony Super HAD CCD / NEXT Image Process Chip
3.6mm Fixed Lens
480 TV Line in Color
Medium Deluxe Case
Auto White Balance (AWB) / Back Light Compensation (BLC) / Auto Gain Control (AGC)
DC 12V

SPECIFICATIONS

	DO 472-M
Resolution	480(Color) / 520(B/W) TV Lines Horizontally
Image Pick-up Device	Sony 1/3 inch Super HAD CCD with NEXT Image Process Chip
Picture Elements	811(H) x 508(V) 410K pixels
Effective Picture Elements	768(H) x 494(V) 380K pixels
Scanning Area	3.65(H) x 2.74(V) mm
Scanning System	2:1 Interface/ 525 Lines / 60 Fields / 30 Frames
Iris Mode	ESC
Lens	3.6mm Fixed Lens
Minimum Illumination	0.3 Lux at F1.2 / 0 Lux (IR On)
Sync. System	Internal Only
Video Output	1.0 Vp-p Comp. 75Ω
Electronic Iris	1/60 sec ~1/100,000 sec
Backlight Compensation	Built-in
Gain Control	Built-in
White Balance	AWB
Day & Night	Auto / On
Gamma	r=0.45
S/N Ratio	50dB (AGC Off, Eight On)
Operating Temp.	14°F ~ 122°F
Power Source	DC 12V
Power Consumption	200mA
Casing / Dimensions	5.0”(Ø) x 3.5”(H) / 1.1 lbs / Medium Deluxe Case
