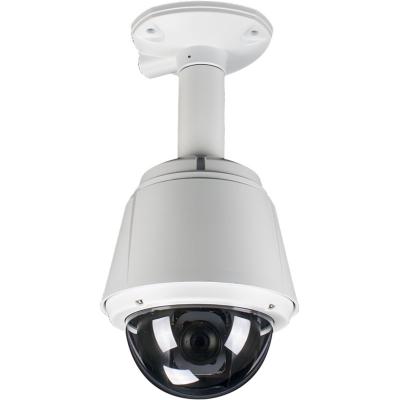

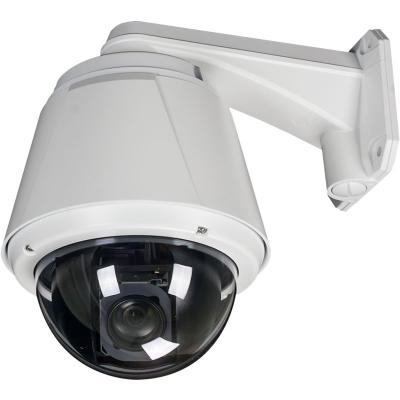

Eyemax XPT-1330 1080p In/Outdoor PTZ with HIGH SPEED ×360 Zoom HD-SDI Camera

Additional View

Eyemax XPT-1330 1080p In/Outdoor PTZ with HIGH SPEED ×360 Zoom HD-SDI Camera

XPT-1330
Camera	Image Sensor	6.49mm (1/2.8 Type) CMOS Sensor
	Resolution	3M Pixels (2096 ? 1561)
	ISP	XDI-II
	Zoom	Optical ?30 & Digital ?12
	Focal Length	F1.6~5.0, f=4.3~129.0 mm
	GainControl	Auto / Low / Middle / High
	Shutter Control	Auto / Manual (1/30 ~ 1/10,000 SEC.)
	White Balance	Auto / ATW / One Push / Manual
	Day & Night	Auto / Day / Night (ICR)
	Minimum Illuminance	0.8 Lux (Color, AGC 30, Sens-up Off) / 0.1 Lux(B/W, AGC 30, Sens-up Off)
	BLC	WDR / BLC / Off
	Sens-up	Off / Auto (x2, x3, x4, ?x64)
	NR (Noise Reduction)	3D-DNR (Off / Low / Middle / High)
	Privacy Zone	8 Masks with Spherical Coordinate
	Image Stabilization	On / Off
Pan/Tilt	Range	Pan : 360?(Endless) / Tilt : 90?
	Pan/Tilt Speed	Preset : 500? / SEC.
		Manual :0.05? ~ 360? / SEC. (Zoom Proportional)
		Swing :10?~180? / SEC.
	Preset	255 Presets (46 Presets reserved for HotKeys)
	Pattern	4 Patterns [768 Commands(Approximate 5 Minutes)/ 1 Pattern]
	Swing	10 Swings
	Group	8 Groups (MAX. 40 Actions with The Combinationof Preset, Pattern and Swing)
	Scheduler Function	8 Scheduler Functions with RTC(Real Time Clock)
	Other Functions	Auto Flip, Auto Parking, Power-up Action &etc.
Video	Output	2 x BNC (HD-SDI and CVBS)
	HD-SDI Standard	HDcctv V1.0 / 1.485Gb/s / SMPTE 292M
		Resolution :1080p30, 1080i60, 720p60/30
	CVBS	1.0 Vp-p
RTC(Real Time Clock)	YES (RTC Battery Backup Time : Approximate 2Weeks)
OSD	YES (English)
Serial Port	Port	RS-485 for PTZ Control
	Protocol	Pelco-D, Pelco-P Selectable
Sensor / Alarm	Sensor Input	3 Inputs, Photo-Coupler Type, DC 5V~12V
	Alarm Output	1 Output, Relay Output, MAX. Load DC 24V / 1.0Aor AC 125V / 0.5A
Physical	Mount Bracket	Wall Mount Bracket or Ceiling Mount Bracket
	Dimension	Dome : ?150mm / ?5.9"
		Wall Mount :200(?) ? 408(H) [mm] / 7.87"(?) ? 16.1"(H)
		CeilingMount : 300 ? 309(H) [mm] / 11.8" ? 12.2"(H)
	Weight	Approximate 3.6 Kg / 7.9 Lbs with Wall Mount Bracket
		Approximate3.4 Kg / 7.5 Lbs with Ceiling MountBracket
	Material	Dome : Poly Carbonate / Housing : Aluminum
	Rated Power	Dual Power Support : DC 12V / 1.8A or AC 24V /2.0A
	Waterproof	IP 67
	Fan	Always ON
	Heater	Operation Start from Internal Temperature 10 ?C (50?F)
	Operating Temp.	-30?C ~ 50?C (-34?F ~ 122?F)
