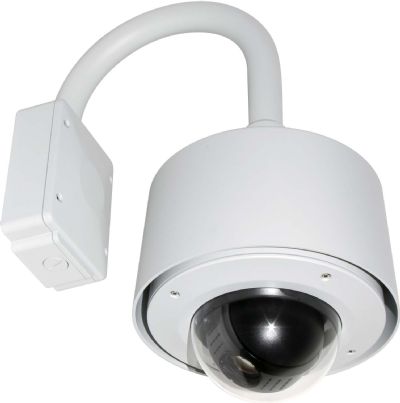

Eyemax PT 9637-W 1/4" Double Density Interline Transfer CCD 550/620 TVL w/ WDR Day/Night Outdoor (Heater/Blower) 444x Zoom (x37 Optical x12 Digital) PTZ Camera - Wall Mount

POWERFUL PAN/TILT FUNCTIONS

Max. 360°/sec. high speed Pan/Tilt Motion

Using Vector Drive Technology, Pan/Tilt motions are accomplished in the shortest path. As a result, time to target view is reduced dramatically and the video on the monitor is very natural to watch.

Ultra low speed (0.05°/sec.) enables operator to locate camera to desired target view with accuracy and ease.

Zoom-proportional pan/tilt speed helps operator to move the camera easily.

PRESET, PATTERN, SCAN, GROUP, SCHEDULE AND MORE

MAX. 127 Presets are assignable. All of them have independent characteristics such as White Balance, Auto Exposure, Label, Alarm Input/Output and so on.

Max. 8 set of Scan can be stored. This enables to move camera repetitively between two preset positions with designated speed.

Max. 4 of Patterns can be recorded and played back. This enables to move camera to follow any trajectory operated by joystick as closely as possible.

Max. 8 set of Group action can be stored. This enables to move camera repetitively with combination of Preset or Pattern or Scan. A Group is composed of max. 20 entities of Preset/Pattern/Scans.

7 rules of Schedule can be assigned by day and time. Appropriate actions (such as Home, Preset, Group, Pattern and Scan) can be defined for each rule. Also, it is possible to use Weekday and All days to simplify the rule.

PTZ (PAN/TILT/ZOOM) CONTROL

With RS-485 communication, max. 255 of cameras can be controlled at the same time.

Pelco-D/ Pelco-P/ Samsung protocol can be selected as a control protocol in the current version of firmware.

OSD (ON SCREEN DISPLAY) MENU

OSD menu is provided to display the status of camera and to configure the functions interactively.

The information such as Camera ID, Pan/Tilt/Zoom/Direction, Alarm Input & Output, date/time, current temperature and Preset can be displayed on screen.

Each display item can be turned on or off independently.

ALARM I/O FUNCTIONS

8 alarm sensor Inputs and 4 relay output are available.

To reject external electric noise and shock perfectly, alarm sensor Input is decoupled with photo coupler.

The signal range of sensor input is from DC 5.0 to 12.0 volts to adopt various applications.

If an external sensor is activated, camera can be set to move to the corresponding Preset position

1/4" Double Density Interline Transfer CCD
�444 Max. Zoom (�37 Optical, �12 Digital)
WDR (Wide Dynamic Range) function support.
DIS (Digital Image Stabilizer) function support.
Day & Night Function : ICR (IR Cut filter Removal)
Various Focus Mode: Auto Focus / Manual Focus / Semi-Auto Focus.
Independent or Global camera settings for each Preset locations.

		PT 9637
Camera	Signal Format	NTSC
	Image Sensor	1/4" Double Density Interline Transfer CCD
	Total Pixels	410K Pixels [811(H) x 508(V)]
	Effective Pixels	380K Pixels [768(H) x 494(V)]
	Horizontal Res.	Color: 550 TV Line / BW:620 TV Line
	S/N Ratio	50dB
	Zoom	�37 Optical Zoom, �12 Digital Zoom ( Max. �444)
	Focal length	F1.6(W) 3.5(T) f=3.5~129.5mm
	Min. Illumination	Color: 1.0Lux/F1.6 (50IRE) B/W: 0.1Lux /F1.6 (50IRE)
	Day & Night	Auto / Day / Night (ICR)
	Focus	Auto / Manual / Semi-Auto
	Iris	Auto / Manual
	Shutter Speed	256�~2�, 1/60~ 1/120000 sec (27 Step)
	AGC	Low/ Middle/ High/ Manual/ Off
	White Balance	Low/ Middle/ High/ Manual/ Off (1,800K ~10,500K)
	WDR, HLC	OFF/ WDR/ HLC
	Flickerless	Selectable
	DNR	LOW/ MIDDLE/ HIGH/ OFF
Pan/Tilt	Range	Pan : 360°(Endless) Tilt : 0~180°(Auto-Flip On) , 0°~ 95°(Auto-Flip Off)
	Pan/Tilt Speed	Preset : 360°/sec Manual : 0.05 ~ 360°/sec (proportional to zoom) Auto Pan : 1~ 180°/sec
	Preset	127 Preset (Label, Camera Image Setting)
	Pattern	4 Patterns, 1,000 commands/Pattern (about 5 minutes in Normal operation)
	Scan	8 Scan
	Group	8 Group (20 action entities per Group)
	Schedule	7 Rules (Condition: Day, Time � Action: Preset, Scan, Group, Pattern)
	Other Functions	Freeze In Preset, Auto Flip, Auto Parking, Power Up Action etc..
General	Communication	RS-485
	Protocol	Auto, Pelco-D, Pelco-P, Samsung selectable
	Privacy Zone	8 Zone
	Alarm Input	8 Input
	Alarm Output	4 Relay Output
	OSD	Menu / PTZ information etc Support 7 Languages
	Rated Power	AC 24V : 24W(Header OFF) / 57W(Heater ON)
	Dimension	Net (W�H �D) : 260 � 552 � 405 mm, 10.2 � 21.7 �16 inch Package (W�H�D) : 605�400�500 mm, 23.8 �15.7 �19.7 inch
	Weight	Net : about 6 kg, 13.2 Lb Package : about 11 kg, 24.2 Lb
	Operating Temp.	-45°C ~ 50°C (-49°F ~ 122°F)
