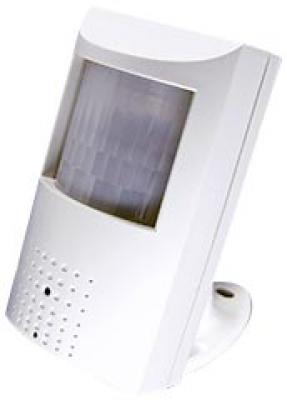

PIR Motion Sensor with Built-in Spy Pinhole Camera

Description
Product Review

Originally the PIR (passive infrared) covert cameras were developed as a method for monitoring cash registers in retail stores, the PIR camera has evolved into one of the most versatile covert cameras available. At home, in the office, warehouse or manufacturing environment, the PIR camera is available in hardwired models with a down view camera in one area, makes this the perfect choice for a small or a medium sized business. All of the PIR cameras have a 3.7mm 78° field of view pinhole mini lens. The color cameras have 560 lines of resolution and low 0.4 lux rating.

1/3” Sony Super HAD color CCD
Crystal Clear : 560 (Color) / 580 (B/W) TV lines
Day & Night : sensitivity increasing during night time
0.4 Lux at F1.2 (Color) / 0.03 Lux at F1.2 (B&W)
DC 12V / 60Hz
3.7mm fixed pin-hole board Lens Installed

	HI PIR CH
Image Pick-up Device	1/3 Sony Super HAD CCD
Picture elements	811(H) x 508(V) 410K pixels (NTSC) 795(H) x 596(V) 470K pixels (PAL)
Effective picture elements	768(H) x 494(V) 380K pixels (NTSC) 752(H) x 582(V) 440K pixels (PAL)
Scanning Area	3.65(H) x 2.74(V) mm
Scanning System	2:1 Interlace (NTSC Standard) 525 Lines / 60 Fields / 30 Frames
Sync System	Internal
Resolution	560(D) / 580(N) TV Lines Horizontally
S/N Ratio	More than 48dB (AGC OFF)
Video Output	CVBS : 1.0Vp-p / 75Ω
Lens	3.7mm fixed pin-hole board Lens
Minimum Illumination	0.4 Lux at F1.2(Color) 0.03 Lux at F1.2 (B/W)
White Balance	AWB
Shutter Speed	1/60 ~ 1/120,000 sec
BLC	Built-in
Gain Control	Built-in
Day & Night	Yes
Operational Temperature	-10°C ~ 50°C(14°F ~ 122°F) 30% to 80% RH
Storage Temperature	-20°C ~ 60°C(14°F ~ 122°F) 20% to 80% RH
Power Input Voltage	DC 12V ±10%
Power Consumption	300mA
