Eyemax LD-M3400 HD CCTV Test Monitor / A-HD + Analog

Additional View

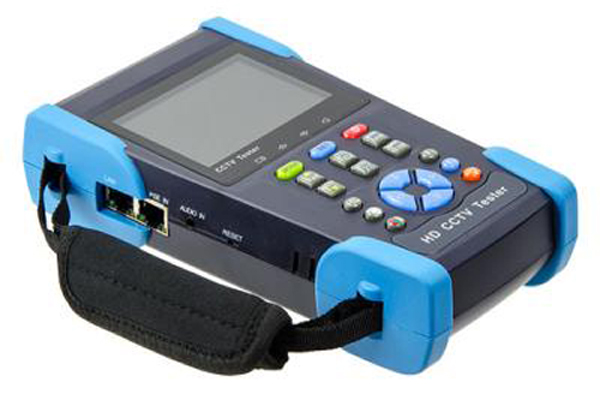

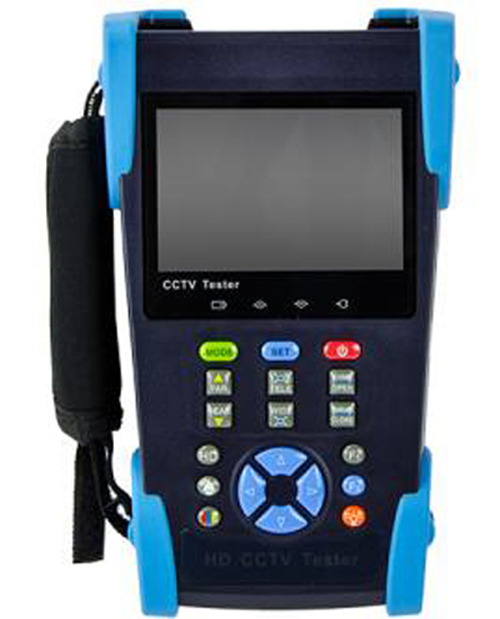

Eyemax LD-M3400 HD CCTV Test Monitor / A-HD + Analog

Select your desired language: English, Chinese, Italian or Polish etc.
3.5” TFT-LCD screen display, 480(RGB) x 320 resolution
LED Lamp, easy to operate at night
User-defined shortcut keys (F1 and F2)
LCD screen brightness/contrast/color saturation adjustable
Automatically adapts and displays the video format of NTSC/PAL
Enhanced color bar generator, new added gray-scale image test. PAL/NTSC multi-system color bar video generator (Eight-system switchable, transmit/receive eight-system colorful images)
PING testing, PING is the most conventional network debugging tools; it is used for testing if the connected IP camera or other network equipment's Ethernet port is working normally and the IP address is correct.
IP address scan, in digital IP surveillance applications, if the IP camera's IP address is not known; the device cannot be used. An IP address scan can quickly search for the connected IP camera or other network device's IP address.
POE voltage test, test the PoE voltage when a POE switch is supplying POE power to an IP camera.
Port finder, the tester will send signals to make the connected PoE port flicker at a set frequency. This will enable the installer to easily and quickly find the connected port for an Ethernet cable.
Link monitor, check the setting IP address whether occupied.
TDR cable test, test cable's open circuit (breakpoint) and short circuit location.
PTZ address scan, search up the ID of PTZ camera
Network cable and Telephone cable testing, display the sequence of connection and the NO of the Lan cable
Support RS232/RS485/RS422, Rate 600 ~ 115200bps adjustable
Supports more than thirty PTZ protocols, such as PELCO-P, PELCO-D, SAMSUNG, etc
PTZ protocol analysis, control protocol command displays to check RS485 transmission whether is normal, easy to find the fault device
PTZ control, Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and sets and the preset position
DC 12V 1A power output for camera
Audio input test, test the audio signal from pickup devices
Lithium Ion Polymer Battery. Remaining battery charge indicator, Lithium Ion Polymer battery can last 11 hours for normal use after charging for 4-5 hours.

Model	LD-M3400
Video Test
Signal Mode	NTSC / PAL (Auto adapt)
Display	3.5 inch HVGA TFT-LCD, 480 (RGB) x 320 resolution
LCD Adjustment	Brightness, Contrast, Saturation adjustable
Video IN/OUT	1 channel BNC Input & 1 channel BNC Output
Video Output Mode	1.0 Vp-p
Video Signal Test
Video Signal Test	Video signals measured in IRE or mV
PTZ Controller
Communication	Support RS232 and RS485
PTZ Protocol	Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.
Baud Rate	600, 1200, 2400, 4800, 9600, 19200, 57600, 115200bps
Video Signal Generation
Color Bar Gen- erator	Support both PAL / NTSC format’s standard color bar output (Red, Green, Blue, White, Black, Grey) and testing image output
UTP Cable Tester
UTP Cable Test	Display UTP cable connection status, cable type and the sequence of wires as well as read the number of the test box
DC12V 1A Power Output
DC12V power output	Output DC12V1A power of camera
Audio Input Test
Audio Input Test	1 channel audio signal input, support audio recording
RS485 Data Analysis
Data Monitor	Captures and analyzes the command data from controlling device
Ethernet Port Finder
Port Finder	The tester will send signals to make the connected PoE port licker at a set frequency. This will enable the installer to easily and quickly ind the connected port for an Ethernet cable.
IP Scan, Link Monitor, PING Test
IP Scan	Find out the connected IP camera or the other network equipment IP address quickly
Link Monitor	Check the IP address whether is occupied
PING testing	Test if the connected IP camera or other network equipment is working normally and the IP address is correct.
PoE Tester
PoE Voltage Test	Measure PoE switch voltage and displays pin coniguration
Power
Power Adapter	DC 5V (1.5A)
Battery	Built-in 3.7V Lithium polymer batter, 3000mAh
Rechargeable	After charging 3-4 hour, working time lasts 11 hours
Low Consumption	Energy saving, battery capacity indicator
Parameter
Operation Setting	OSD menu, select your desired language: English, Chinese, etc
Auto off	5-60 (mins)
Keytone	On/Off
General
Working Tempera- ture	-10°C ~ +50°C
Working Humidity	30% ~ 90%
Dimension	194mm x 112mm x 48mm

free shipping

orders $500 and up

Search Product

Products

customer services

By Manufacturer

By Price

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

Additional View

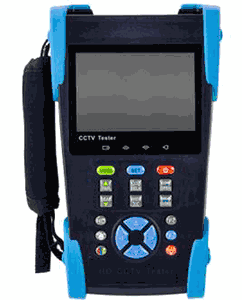

Eyemax LD-M3400 HD CCTV Test Monitor / A-HD + Analog

SKU#

:

LD-M3400

Regular Price

:

$399.95

Sale Price

:

$249.95

You Save

$150.00(37.50% )

Availability

:

Usually ships the next business day
